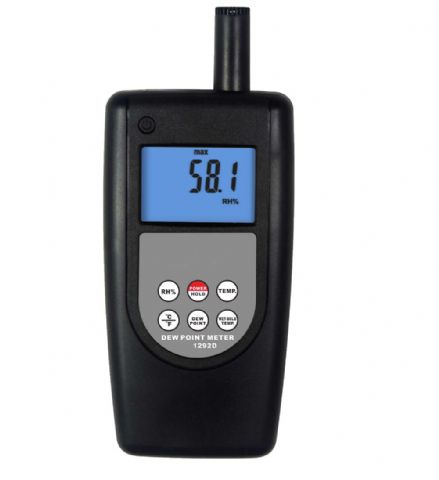

Portable Digital Dew Point Meter
Zoom Browse
Product Name: Portable Digital Dew Point Meter
Product Numbers: DPME-1292D
Product Specifications: Range: -10 ~ 60
Product Remark: Temp.:Resistance
Product Class:Measuring and Testing Instruments > Temperature Measuring Instrument > Dew Point Meter
Product Details
【DateTime:2018-03-13 Browse:】【Font: Big Mid Small】【Print】【Close

Portable Digital Dew Point Meter Dew Point Tester

Features:

*Able to measure Humidity, Temperature, Wet Bulb Temperature, Dew Point Temperature.
 * Used  the  exclusive  MICRO-COMPUTER  LSI  circuit and crystal time base to offer the high accuracy meas-urement & fast measuring time.
* Digital display gives exact reading with no guessing or errors.
*  Wide measuring range & high resolution.
*  The  Last Values / Max. Values / Min. Values  of  both  Humidity and Temperature will be  automatically stored in memory and can be displayed by turn.
* The use of durable, long-lasting components, including a  strong,  light  weight ABS-plastic  housing  assures maintenance  free  performance  for  many  years.  The housing has been carefully shaped to fit comfortably in either hand.


Specification:

Display:10 mm LCD
Measuring Range:Humidity 10 ~ 95 %RH
Temp.: -10 ~ 60 °C(14 ~ 140 °F)
Wet Bulb Temp.:-10 ~ 60 °C(14 ~ 140 °F)
Dew Point Temperature: -40 ~ 40 °C(- 40~104 °F)
Resolution Humidity:0.1 %RH
Temp.:0.1 °C / 0.1 °F
Wet Bulb Temp.:0.1 °C / 0.1 °F
Dew Point Temperature:0.1 °C
Accuracy Humidity:2.5% ± 1% RH
Temp.:± 0.5 °C
Wet Bulb Temp.:± 0.5 °C
Dew Point Temperature ± 1 °C
Sensor Type:Humidity Capacitor
Temp.:Resistance
Sampling Time:0.4 Seconds
Memory:Last Value, Max. Value, Min Value
Time Base: Quartz Crystal
Power Supply:4 x 1.5 V AAA Size (UM-4) Battery
Dimensions:171 x 72 x 34 mm ( 6.7 x 2.8 x 1.3 inch )
Weight:145 g / 0.32 lb (Not Including Batteries)

Package:
1. Main Unit
2. Carrying Case
3. Operation Manual
