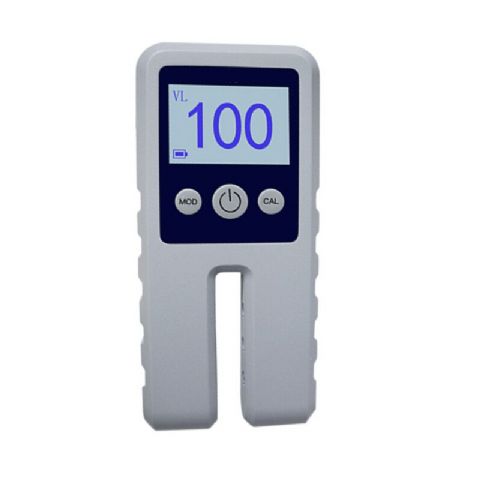

Automobile Window Light Transmittance Meter Window Tint Reader
Product description: It can be applied to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.
Features
* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB/RS-232 data output to connect with PC.
|
Model
|
Parameters
|
WT11
|
WT13
|
|
Measurement range
|
0~100%
|
YES
|
YES
|
|
Size
|
135.5mmx62.5mmx22.5mm
|
YES
|
YES
|
|
Wight
|
93g(Battery excluded)
|
YES
|
YES
|
|
Resolution
|
0.1%
|
YES
|
YES
|
|
Accuracy
|
±2%
|
YES
|
YES
|
|
Power supply
|
4x1.5V AAA (UM-4)
|
YES
|
YES
|
|
Working flow
|
<30mA
|
YES
|
YES
|
|
Sample thickness
|
<9mm
|
YES
|
YES
|
|
Operating Conditions
|
Temp:0~50℃,
Humidity:<90%
|
YES
|
YES
|
|
Test model
|
Visible light
|
YES
|
YES
|
|
UV
|
|
YES
|
|
IR
|
|
YES
|
|
Visible light,UV,IR
|
|
YES
|
|
Spectrum range
|
Visible light:
380~760nm
|
YES
|
YES
|
|
IR:940nm
|
|
YES
|
|
UV:365nm
|
|
YES
|
