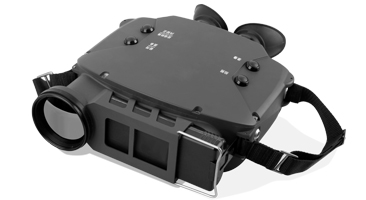

THIM-6093 portable, handheld thermal imaging binocular observation equipment for day and night searching and observation, has photo and record functions. With features of anti-shock and vibration, enjoys wide operating temperature range and other characteristics, used in the fields of night vision observation and surveillance, security smuggling, criminal investigation, search and rescue and other fields
Features
-- 320×256 cooled FPA detector
-- Auto focus
-- Photo and Record
-- GPS electronic compass
-- Laser range finder
-- Electrical zoom
-- IP67
Specification:
|
Items
|
THIM-6093
|
|
Detector
|
Detector Type
|
HgCdTe cooled FPA detector
|
|
Spectral range
|
3 ~ 5 µm
|
|
Array size
|
320×256
|
|
Machine Characteristics
|
NETD
|
≤30mk@30℃
|
|
Lens
|
Fov
|
Wide Fov:9.1°×7.2°,Narrow Fov:2.3°×1.8°
|
|
Lens
|
240/60mm/F4
|
|
Functions
|
Brightness Enhancement
|
Auto/manual
|
|
Image Enhancement
|
Yes
|
|
Filtering
|
Yes
|
|
Zoom
|
2X
|
|
Black hot/ white hot
|
Yes
|
|
Focus
|
Auto or electronic focus
|
|
Photo and Recording
|
Yes
|
|
Environment
|
Operating Temperature
|
-30℃~ +50℃
|
|
Storage Temperature
|
-40℃~ +60℃
|
|
Encapsulation
|
IP67
|
|
Physical Characteristics
|
Voltage
|
DC 21~27V
|
|
Power consumption
|
≤18W
|
|
Video output
|
PAL, 75Ω
|
|
Remote control
|
RS232
|
|
Display
|
OLED or monitor
|
|
Weight
|
≤3KG
|
|
Dimension
|
324(L)mm×248(W)mm×88(H)mm
|
|
Detection range
|
Human
|
6600m
|
|
Car
|
9000m
|
|
Recognition range
|
Human
|
2200m
|
|
Car
|
3000m
|
