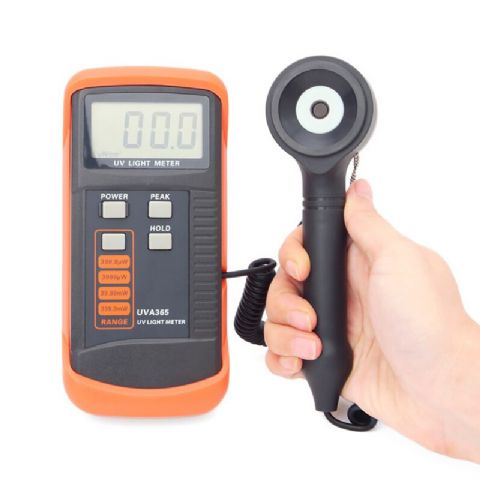

UVA Light Meter UVA365 Virology UV Photo Diode
UVA ultraviolet A has higher wavelengths, but lower energy levels than other UV rays, UVA rays are the main type of light used in tanning beds
The UVA light meter is widely used in :
*Weathering ‘degradation
studies’
*UV sterilization
*Virology
*Microbial genetics
*DNA research
*Biologic hoods*General laboratory use
Features:
*Professional, high quality UV light meter
*Measurable of UVA
*UV detector spectrum: 320 nm to 390 nm.
*Four range selection switchable.
*Exclusive UV sensor structure.
*LSI-circuit provides high reliability and durability
*Separate UV LIGHT sensor allows user to measure the UV light at an optimum position
*LCD display, easy readout
Specifications:
* Display:3 3/4 LCD display, maximum reading 39990.
* Measurement Range:0-400 mW/cm2
Four range selectable:400 μW, 4000 μW, 40 mW, and 400mW
(1000 μW/cm2 = 1 mW/cm2)
* UV sensor spectrum:bandpass 320 nm-390 nm
* Accuracy:±(4%FS + 2dgt) Calibration under the standard UVA light & and compare;Special tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only
* Sensor structure:exclusive UV photo diode & UV color correction filter.
* Sample Time:2.5 times/s.
* Over Range indication:"OL"
* Weight: 325g(include battery)
* Operating Temperature & Humidity:
-10ºC to 40ºC(32ºF-104ºF) 0~70%Rh
* Power Supply:DC 9V battery, 006P, MN 1604 (PP3) or equivalent.
* Power Consumption:Approx. DC 2.7 mA
* Dimension:165x50x32mm (photo detector),160x78x43mm (meter body)
How to use?
1) Press Power button to
turn on
2) Press range selection
switch to desired range.
3) Remove the photo detector
cap and face it to UV light source, read the test value from the LCD display.
4) If the instrument displays “OL” on the LCD, then a
higher range should be selected
5) Data-Hold mode: press the
‘HOLD’ key to select Data Hold mode, LCD display “H”, the reading is locked, press
“HOLD” again to exit hold mode.
6) Peak-Hold mode: press the
‘PEAK’ key to select peak Hold mode, LCD display “PH”, the instrument displays
new reading when higher UV light appears. Press “PEAK” again to exit peak hold
