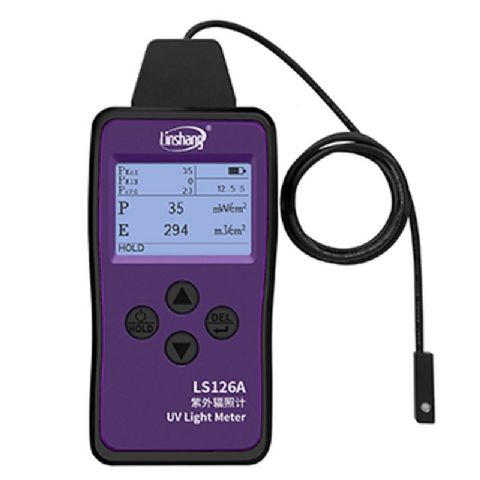

126A UV intensity meter is mainly used to measure the intensity and energy of UVA band ultraviolet LED light source. UVA band LED light sources are mainly 365nm, 375nm, 385nm, 395nm, 405nm and other bands. These light sources are mostly used in curing, exposure and other industries. LS126A UV light meter has a wide spectral response and can test any wavelength from 365nm to 405nm. In addition, it adopts an ultra-small probe design with a probe width of only 7.2mm, which is very suitable for measuring narrow spaces where conventional probes are difficult to place.
| Parameters | LS126A UV Light Meter |
| Spectral response | 340nm-420nm, calibrated with 395nm UV LED light source |
| Power measuring range | 0 - 20000 mW/cm² |
| Resolution | 1 mW/cm² |
| Energy measuring range | 0-9999999mJ/cm2 |
| Record time | 0-99999s |
| Accuracy | ±10 % |
| Sampling speed | 2048 times/second |
| Optional unit | mW/cm²(default), W/cm², W/m² |
| Test hole diameter | ￠=3mm |
| Probe dimension | 36mm ×7.2mm ×4.7mm(L*W*H) |
| Host dimension | 170mm ×76mm×26mm (L*W*H) |
| Probe wire length | 0.8m |
| Weight | About 232g (with battery) |
| Display | 240*160 dot matrix LCD |
| Battery | 4 AAA alkaline dry batteries |
Features:
1. Ultra-small size probe
2. High-speed acquisition, 2048 samples per second
3. Maximum value, minimum value, average value, and measurement time
4. Suitable for the detection of the intensity and energy value of LED light sources in narrow space of 365nm, 375nm, 385nm, 395nm, 405nm and other bands
Package:
| No. | Item | Quantity | Unit |
| 1 | LS126A UV light meter | 1 | Pcs |
| 2 |
|
|
|
| 3 | User manual | 1 | Pcs |
| 4 | Certificate/Warranty card | 1 | Pcs |
| 6 | Packing box dimension 34*29*9 cm（L*W*H） | 1 | Pcs |
|
Parameters
|
LS126A UV Light Meter
|
|
Spectral response
|
340nm-420nm, calibrated with 395nm UV LED light source
|
|
Measuring range
|
0 - 20000mW/cm2
|
|
Resolution
|
1mW/cm2
|
|
Energy measuring range
|
0-9999999mJ/cm2
|
|
Record time
|
0-99999s
|
|
Accuracy
|
±10 %
|
|
Sampling speed
|
2000times/second
|
|
Optional unit
|
mW/cm2 (default), W/cm2, W/m2
|
|
Test Hole Diameter
|
￠=3mm
|
|
Probe size
|
28mm long×7.2mm wide ×6.5mm thickness
|
|
Instrument size
|
148mm long ×76mm wide ×26mm high
|
|
Probe wire length
|
0.8m
|
|
Instrument weight
|
About 232 grams
|
|
Display
|
240*160 dot matrix LCD
|
|
Battery
|
4 AAA alkaline dry batteries
|
