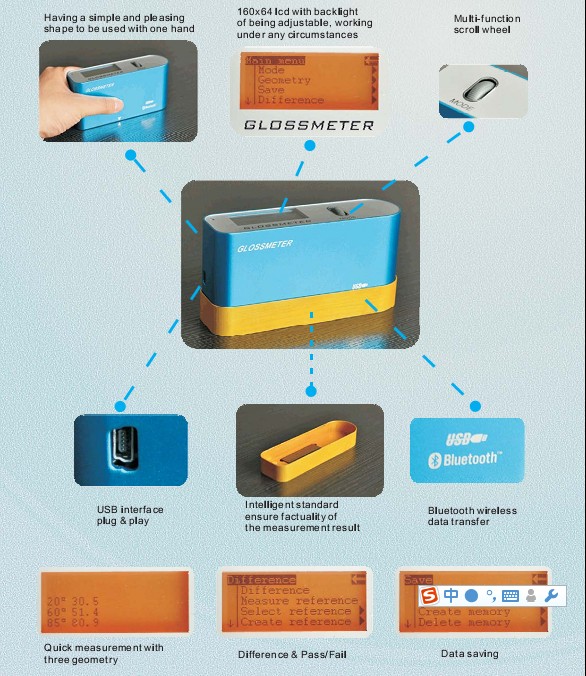

Digital Gloss Meter with Bluetooth and USB Interface Features:

1. Intelligent:  Auto calibrate, statistics, difference, Pass/Fail,

2. Portable: 137*38*64mm, with metal frame.

3. Little power comsumption with AA/LR6 Battery

5. 160*64LCM COB display.

6. USB interface,

7. Bluetooth, my Gloss 3.0 data software.

8. Gloss Meter Standard: ASTM D 523, D 2457,

                        ISO 2813, 7668,

                        DIN 67530

                        GB9754

Specification of Gloss Meter:

1. Geometry: 20°  60°  85°

2. Range:

     20   0-99.9Gs 100-2000Gs

     60   0-99.9Gs 100-1000Gs

     85   0-99.9Gs 100-160Gs

3. Repeatability, Reproducibility

    0.2Gs(0-99.9Gu)    0.5Gs(0-99.9Gu)

    0.2%(100-1000Gu)0.5%(100-1000Gu)

4. Storage:  1000 measurements with date/time, in up to 50 meaory areas

5. Difference: Memory for 50 references

6. Calibration: Auto calibrate& Modify values manual

7. Statistics: Most 99 statistics value, with value, average, maximum, minimum, Range, diff, pass/fail

8. Window Size: 38*11mm

9. Power: one AA/LR6 Battery

10 Weight: 380g

11.Software: My gloss 3.0

12. Range: Auto Range.

13. Speed: three Geometry in one second

14. Language: English/Chinese/German

15. LCD Backlight 1-3 level adjustable

16. Beeper: Four kinds of sound

17. Auto power off: 1-999 second adjustable.

Package:

1. Gloss Meter

2.  Holder with Standard Board

3.  CD( my gloss 3.0)

4.  USB Cable

5. Bluetooth adapter

6. Operation Instruction

7.  Inspect Rport

8. Portable case.



Order No	Geometry	Spot Size	Accuracy
GLME-2220	20°	10*10mm	High Gloss
GLME-2260	60°	10*20	Semi Gloss
GLME-2285	85°	8*30	Low Gloss
GLME-2226	20°  60°	Above	Above
GLME-2268	20°  60°  85°	Above	Above
