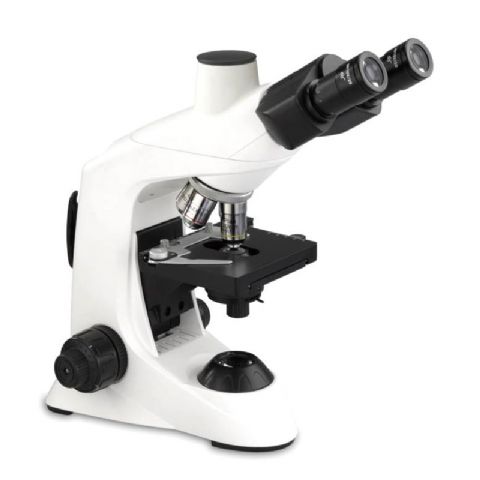

Biological Microscope Seidentopf Binocular 360 Rotatable Head
Perfect Optical System
● High resolution and perfect definition from infinity correct optical system
● 100X water objective instead of 100X oil objective, more be convenient for using
Perfect Appearance Design
● Drop-style integrated appearance design, looks elegant
Perfect Ergonomics Design
● Low position operation, convenient for long-term using
● New wound device for cable, easy to move and keeping
● The changing of objectives can be watched by back side through the back watching window
● Rackless(Integrated) stage
● Series Biological Microscope Outfit
Specification:
|
Items
|
Specification
|
BIMI-21401
|
BIMI-21402
|
|
Main Body
|
|
●
|
●
|
|
Eyepiece
|
WF10X/20mm (High eyepoint)
|
●●
|
●●
|
|
Infinity Objective
|
EPLAN 4X/0.10
|
●
|
○
|
|
EPLAN 10X/0.25
|
●
|
○
|
|
EPLAN 40X/0.65(S)
|
●
|
○
|
|
EPLAN 100X/1.25(S，Oil)
|
●
|
○
|
|
PLAN 4X/0.10
|
○
|
●
|
|
PLAN 10X/0.25
|
○
|
●
|
|
PLAN 20X/0.40(S)
|
○
|
○
|
|
PLAN 40X/0.66(S)
|
○
|
●
|
|
PLAN 60X/0.80(S)
|
○
|
○
|
|
PLAN 100X/1.25(S，Oil)
|
○
|
●
|
|
PLAN 100X/1.15(S，Water)
|
○
|
○
|
|
Observing Head
|
Seidentopf Binocular Head, Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48-75mm
|
●
|
●
|
|
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°,
Interpupilary Distance: 48-75mm
Light Distribution: 20:80
|
○
|
○
|
|
5 MP Pixel Digital Head
1/2’’CMOS color sequential scanning. USB2.0
Light Distribution: 20:80
|
○
|
○
|
|
Nosepiece
|
Quadplex
|
●
|
●
|
|
Mechanical Stage
|
Size 145mmX140mm, Travel Range:76mmX52mm, Scale: 0.1mm, Two Slide Holder
|
●
|
●
|
|
Rackless(Integrated) stage,
Size: 140×135mm,Travel Range: 75×35mm,
Two-slide holder
|
○
|
○
|
|
Abbe Condenser
|
N.A.1.25，With iris Diaphragm
|
●
|
●
|
|
Coaxial Coarse and Fine Focusing Knobs
|
Coarse Focusing Travel Range: 25mm
Fine Focusing Travel Range: 2µm/division
|
●
|
●
|
|
Aspheric Illumination
|
3W LED Illumination，Voltage: 100V-240V
|
●
|
●
|
|
Dark Field Unit
|
Dark Field Ring (Dry, N.A.0.9)
|
○
|
○
|
|
Polarizing Unit
|
Analyzer, Polarizer
|
○
|
○
|
|
C-mount
|
1×/0.75×/0.5×C-mount（Adjustable）
|
○
|
|
|
Wire Winding Device
|
|
●
|
●
|
In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 345mm×260mm×455mm Gross Weight: 6.7 kgs Net Weight: 5.3 kgs
