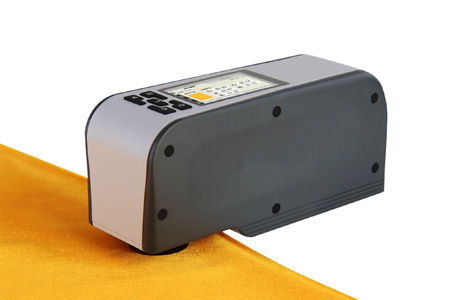

Colour Difference Meter (Colorimeter) With 16mm Measuring Aperture
Description:
This colorimeter for plastic, surface treatment, painting, printing, toys, clothing, building materials, rubber, leather, glass, household appliances, printing and dyeing industry, color quality control, color control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other auxiliary color.In particular, if the measured surface is wet, in order to protect the interior of the instrument is not contaminated, measurement, measurements should be chosen to protect the mouth with a glass plate measuring 16mm caliber colorimeter.Using large diameter measuring port measurement has the advantage that each measurement textured, such as pitting the surface of the test will be more consistent, which is difficult to achieve a small diameter measurement results.
Specifications:
Display Mode |
CIELAB, CIELCH, CIEXYZ, CIELUV, HunterLAB, sRGB |
Color Difference Formula |
Delta E*ab, Delta ECMC, DeltaEISO, DeltaECIE94, DeltaEFCMⅡ, DeltaELuv, DeltaEhunter, DeltaEsRGB |
Yellowness and Whiteness |
Ganci whiteness, ISO brightness, YI yellowness |
Illumination Condition |
CIE Recommendation: 8/d |
Light Source |
LED blue excitation |
Sensor |
Photodiode array |
Measuring Aperture |
φ16mm |
Measurement Condition |
Observer:CIE 10 Degree Standard observer
Light source: A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30)
Contain light way: SCI SCE |
Measurement Range |
L: 0 to 100 |
Repeated Accuracy |
Delta E<0.03 (take the deviation average after 30 times measuring the whiteboard) |
Table Difference |
Delta E<0.2 |
Measurement Interval |
0.5 Sec. |
Average Measuring Function |
Average measuring frequency: 1-32 times |
Color Simulation Function |
yes |
Storage Capacity |
Type sample data : 100 with testing sample data: 20000
Whiteness/yellowness data: 200 |
Language Patterns |
English/Simplified Chinese/Traditional Chinese |
Quality Control Software |
<Color-Analysis System> software |
Battery Charging Time |
8 hrs |
Battery |
Li-ion battery, 5000 times Measurement |
Lifetime of Bulb |
5 years more than 1.6 million measurements |
Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
Interface of External |
USB2.0 (USB-B)- data communication with <color analysis system>software RS-232 (115200bps)- connected with micro printer |
Working Temperature Range |
0-40 Degree(32℉-104℉) |
Storage Temperature Range |
-20- 50 Degree(-4℉-122℉) |
Humidity Range |
Relative humidity less than 85%,without condensation |
Weight |
700g |
Size |
199*68*90mm |
Size of Exterior Package |
400*240*340mm |
Standard Accessories |
Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User manual/Warranty card |
Optional Accessories |
Flour measuring device/Liquid measuring device/Micro printer |
