Part No: CDME-1330

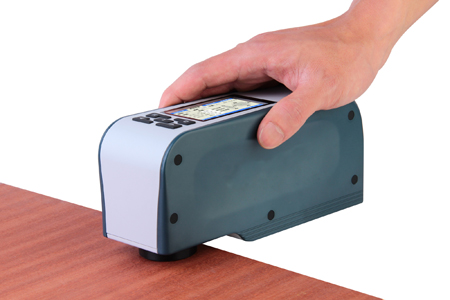

        If you want to measure the texture of the object exists, pitting, or the measured surface grainy relatively strong or relatively large size of the measured object, or analyte soft and pop-up object, The16mm diameter colorimeter is your best Choice , Precision Color Difference Meter  is based on the International Commission on Illumination CIE relevant standards, national standards developed and produced through the National Measurement SCM certified professional colorimeter. The colorimeter using the new import key components, carefully designed, with accuracy and stability, simple operation, easy to learn, affordable and so on.Taking into account the complexity of theColor Difference Meter measurement and diversity of user requirements, Weaver developed the countrys first optical measurement of 16mm caliber precision colorimeter.



Display Mode	CIELAB,CIELCH
Color Difference Formula	Delta E*ab
Illumination Condition	CIE Recommendation: 8/d
Light Source	LED blue excitation
Sensor	Photodiode array
Measurement Caliber	16mm  Alternative
Measurement Condition	Observer: CIE 10 degree Standard observer   Light source: D50 D65 F11(TL84)   Contain light way: SCI SCE
Measurement Range	L: 0 to 100
Repeated Accuracy	Delta E<0.05 (take the deviation average after 30 times measuring the whiteboard)
Table Difference	Delta E<0.2
Measurement Interval	0.5 Sec.
Storage Capacity	Type sample data : 100 with testing sample data: 200
Language Patterns	English/Simplified Chinese
Battery Charging Time	8 hrs
Battery	Li-ion battery, 5000 times Measurement
Lifetime of Bulb	5 years more than 1.6 million measurements
Display Screen	TFT true color 2.8inch@(16:9)  Resolution ratio:400x240
Interface of External	USB2.0 (Usb- data communication with <color analysis system>software                                 RS-232 (115200bps)- connected with micro printer
Working Temperature Range	0-40 C degree（32 F-104 F）
Storage Temperature Range	-20-+50 C degree（-4℉-122℉）
Humidity Range	Relative humidity less than 85%,without condensation
Weight	700g
Size	199*68*90mm
Size of Exterior Package	400*240*340mm

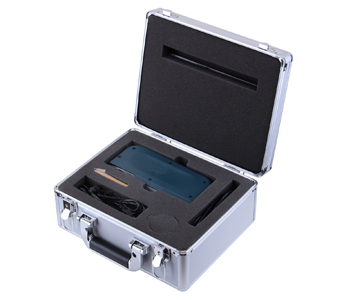

Standard Accessories	3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User     manual/Warranty card
Optional Accessories	Flour measuring device/Liquid measuring device/Micro printer
