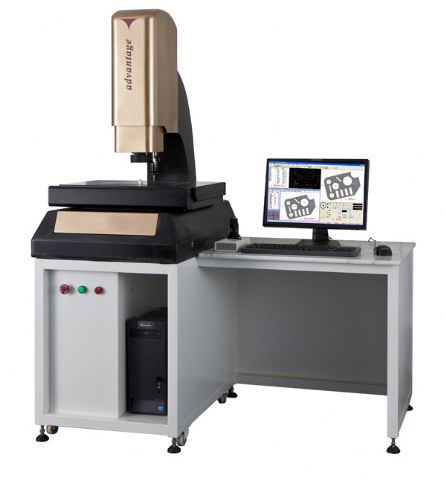

| Product Name: 2D+3D Combined CNC Image Vision Measuring System Machine (VMM) |
| Product Numbers: VIMM-13020 |
| Product Specifications: 300*200,500*300 |
| Product Remark: Zoom lens magnification: 0.7-4.5X |
| Product Class:Measuring and Testing Instruments > Optical Instruments > Video Measuring Machine |
|
 Product Details Specification
|
Model
|
VIMM-13020
|
VIMM-14030
|
VIMM-15030
|
|
Worktable
|
Work table’s size(mm)
|
600*390
|
700*490
|
800*490
|
|
Glass table’s size(mm)
|
350*250
|
450*350
|
550*350
|
|
X,Y Travle(mm)
|
300*200
|
400*300
|
500*300
|
|
Z-axis travel lift(mm)
|
200(Focus)
|
200(Focus)
|
200(Focus)
|
|
X.Y.Z-axis digital display resolution
|
0.5um
|
0.5um
|
0.5um
|
|
X.Y coordinates indicating value error
|
≤(1.5+L/200)
|
|
Instrument Weight (kg)
|
330
|
450
|
500
|
|
Dimension (mm)
|
620*840*1020
|
720*1040*1020
|
800*1040*1020
|
|
Motor
|
Three-axis velocity
|
200mm/s
|
|
Three-axis positioning accuracy
|
0.001mm
|
|
Imaging System
|
Camera
|
U.S. TEO Color 1 / 2 "CCD Camera
|
|
Zoom lens
|
U.S. coaxial optical zoom lens with a zoom lens (2 select one)
|
|
Zoom lens magnification
|
0.7-4.5X
|
|
Video Total magnification
|
20-128X
|
|
Object field
|
11.1-1.7mm
|
|
Power
|
AC220V/AC110V
|
|
Power consumption
|
100W
|
|
Instrument Accessories
|
1X Tube (standard)
|
0.5X Tube (optional)
|
WD
|
|
Zoom lens
|
0.7-4.5X
|
0.7-4.5X
|
|
|
Add Mirror
|
video magnification
|
object field
|
video magnification
|
object field
|
|
0.5X(option)
|
10X-64X
|
22-3.4
|
5X-32X
|
44-6.8
|
175
|
|
1.0X(standard)
|
20X-128X
|
11.1-1.7X
|
10X-64X
|
22-3.4
|
92
|
|
2.0X(option)
|
40X-256X
|
5.5-0.9
|
20X-128X
|
11.1-1.7
|
36
|
|
|
