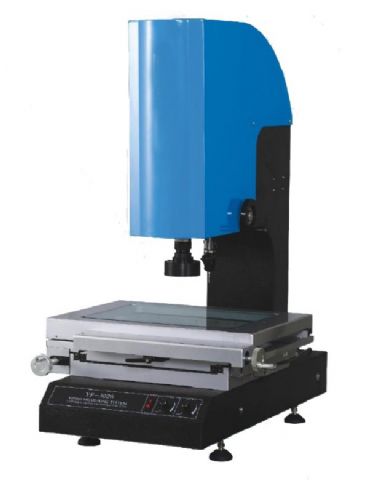

It can measure point, line, circle, arc and oval, rectangular and can improve the accuracy with the multi-point positioning function.



          -Measurement work piece do not need to adjust and straight, the software provide coordinates translational, rotate, straighten.
          -Can make in the image and the geometric area / move size direct. The straight-line pruning, extensions.
          -Geometry take the point, line, circle, arc and a straight line endpoint, midpoint, center, quadrant points by automatically capture. Adjust the CCD of parameter setting, to improve the adaptive force; removal the burrs function, to obtain the correct measurement data.
          -Use the imaging tool to automatically and fast grab the basic geometric contour boundary points directly intends to synthetic line, circle, arc.

          -Measurement data can output into Word ,Excel, auto CAD directly
          -Mechanical graphics can output DXF format ,compare with work piece physical or measuring graphics, and can directly take any two points of error measurement value in the image area.
          -Provide straightness, roundness, angle analysis, and effective quality inspection.

          -With accuracy compensationfunction, to improve the accuracy of the measurement.

Specifications

Model	VIMM-21510		VIMM-22010	VIMM-22515		VIMM-23020	VIMM-24030
The metal table’s size(mm)	354*228		404*228	450*280		500*330	606*466
The glass table’s size(mm)	210*160		260*160	306*196		350*280	450*350
Measuring range(mm)	150*100		200*100	250*150		300*200	400*300
Weight (kg)	170		180	220		260	315
Dimension (L)*(W)*(H)	556*540*860			670*660*950			720*950*1020
The indication error of X,Y-axis ≤(3+L/200)um (L be regarded as measuring the length unit :mm)
Measuring Targeting System (Standard accessories)		Camera: U.S. TEO 1 / 2 Color CCD Camera              With British Renishaw Manual Probe
		Magnification of field lens: 0.7X-4.5X        WD: 92mm
		Variable Cross Line Generator           Data Resolution: 0.001mm
0.5 Lens (Option)		Video Total Magnification			10X-63X
1X Lens (Standard)		Video Total Magnification			20X-126X
2X Lens (Option)		Video Total Magnification			4
