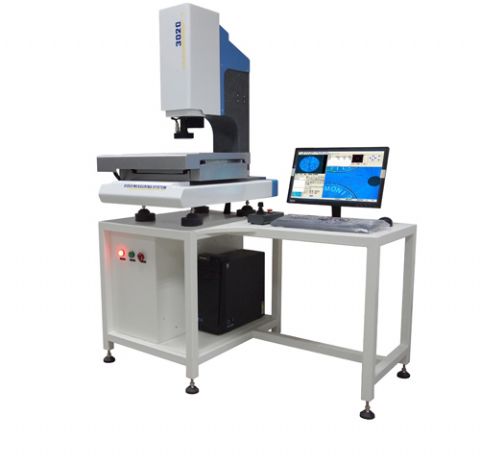

CNC Video Measuirng Machine



Features:

1. The instrument adopts double closed-loop motion control.
2. The motor has precise positioning performance when in high-speed movement.
3. Using the developed embedded modules improves the motors speed accordingly.
4. Simplify  the interface of the instrument and the PC machine which are linked by USB and S-video cable.
5. With granite platform looks simple and generous.
6. The surface light is formed by 24 independent group light. Each group is drived by constant current source and 200-step continuously variable.
7. Combied with our company-specific CNC software will greatly  enhanced the efficiency of measurement.

Specifications:

Model		VIMM-33020	VIMM-34030	VIMM-35040
Table	The metal table’s size(mm)	500*330	606*466	706*566
	The glass table’s size (mm)	350*280	450*350	550*450
	Travel(mm)	300*200	400*300	500*400
Weight(kg)		270	325	500
Dimensions（L*W*H）mm		670*660*950	720*950*1020	800*1040*1020
Measuring Targeting System (Standard Accessories)		Camera: TEO™ Color 1 / 2 Color CCD Camera
		Zoom lens: Guiguang™ professional optical lens
		Zoom lens magnification: 0.7 ~ 4.5X  Data Resolution: 0.001mm
		Video Total Magnification: 20 ~ 128X
		Full mouse / joystick is easy to operate
Z-axis travel (mm):150mmThe indication error of X,Y-axis ≤（3+L/200）μm  (L be regarded as measuring the length unit :mm)a
Illumination: Surface light and transmission light adopt LED, brightness adjustable Power:110/220V(AC), 50/60HZ  600W
