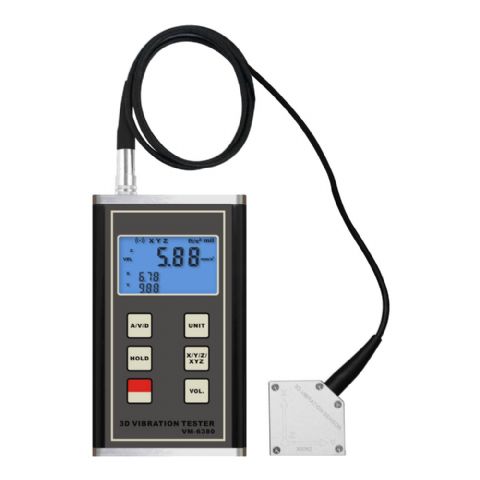

Vibration Meter for Measuring With Piezoelectric Transducer
* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
| Sensor |
Piezoelectric Transducer |
| Measuring Range |
Acceleration |
0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak |
| Velocity |
0.01~400mm/s 0.004~16.0inch/sTrue RMS |
| Displacement |
0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak |
| Frequency Range |
Acceleration |
10Hz~10kHz |
| Velocity |
10Hz~1kHz |
| Displacement |
10Hz~1kHz |
| Accuracy |
5% of Reading+2 digits |
| Operating Conditions |
Temperature |
0~50ºC |
| Humidity |
<90%RH |
| Power Supply |
2x1.5V AA(UM-3)Battery |
| Dimensions |
137x76x32mm |
| Weight |
425g(Not Including Batteries) |
| Standard Accessories |
Main Unit |
| Piezoelectric Transducer |
| Powerful Rare Earth Magnet |
| Probe(Cone)&Probe(Spherical) |
| Carrying Case(B04) |
| Manual Book |
| Optional Accessories |
Headset |
| RS-232C Data Cable with Software |
| Bluetooth Data Adapter with Software |
