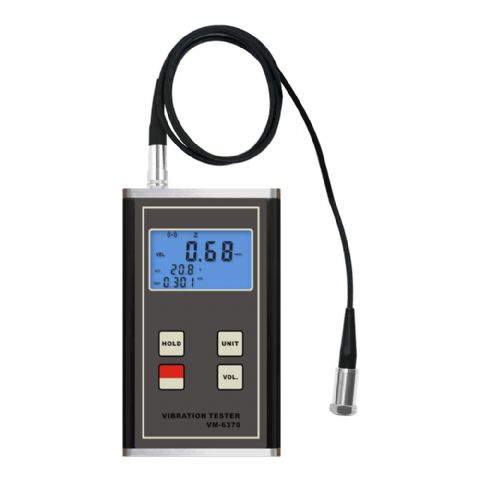

Vibration Meter For Measuring Rotating Machinery
Features:
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration standards
ISO/IS2373 Motor Quality Standard According As Vibration Velocity
|
Quality Rank
|
Rev(rpm)
|
H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
|
80<H<132
|
132<H<225
|
225<H<400
|
Normal
|
600~3600
|
1.8
|
2.8
|
4.5
|
Good(R)
|
600~1800
|
0.71
|
1.12
|
1.8
|
1800~3600
|
1.12
|
1.8
|
2.8
|
Excellent(S)
|
600~1800
|
0.45
|
0.71
|
1.12
|
1800~3600
|
0.71
|
1.12
|
1.8 |
Specfications:
| Sensor |
Piezoelectric Transducer |
| Measuring Range |
Acceleration |
0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak |
| Velocity |
0.01~400mm/s 0.004~16.0inch/sTrue RMS |
| Displacement |
0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak |
| Frequency Range |
Acceleration |
10Hz~10kHz |
| Velocity |
10Hz~1kHz |
| Displacement |
10Hz~1kHz |
| Accuracy |
5% of Reading+2 digits |
| Operating Conditions |
Temperature |
0~50ºC |
| Humidity |
<90%RH |
| Power Supply |
2x1.5V AA(UM-3)Battery |
| Dimensions |
130x76x32mm |
| Weight |
340g(Not Including Batteries) |
| Standard Accessories |
Main Unit |
| Piezoelectric Transducer |
| Powerful Rare Earth Magnet |
| Probe(Cone)&Probe(Spherical) |
| Carrying Case(B04) |
| Manual Book |
| Optional Accessories |
Headset |
| RS-232C Data Cable with Software |
| Bluetooth Data Adapter with Software |
Display:4 digit LCD backlit
Measurement Range:
Velocity: 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration: 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement:0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy:5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C or Bluetooth interface ( Cable and software is not included)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature : 0-50 ℃
Humidity : below 95% RH
Standard package:
Powerful rare earth magnet
Accelerometer
Stinger probe (Cone)
Stinger probe (Ball)
Carrying case
Operation manual
Optional accessories:
•Headphones for use as electronic stethoscope
•Cable and software for RS232C
