Part No: UPLD-1009

Made in China



To detector leakage of the pipe buried underground, The instrument is currently one of the advanced equipment to detect buried pipe coating, pipe corrosion and corrosion of the pipe body positioning points.this is the  oil, chemical, oil, gas, electricity, water, heating department to ensure the safe operation of the pipeline, improve economic efficiency, early discovery pipeline corrosion points, Spill prevention of corrosion necessary testing equipment



- Easy to operate, with multi-functional keyboard.

- Automatically measure the transmitted power , firing voltage , emission current , grounding resistance and other parameters.

- From the internal line normalized processing, the size of the leak coating and insulation resistance value of each test segment comparable

- Using a voltage-controlled oscillator frequency technology , the signal strength of the tube bit and leak response more clearly.

-Sound , showing the value , analog bar cursor display signal strength is more intuitive.
- Small size, light weight , easy to carry , more suitable for field testing.
- Insufficient instrument voltage automatic shutdown, automatic shut off when the internal power supply , energy-saving effect is remarkable.



Specifications:



1 , the transmitter technical indicators :
( 1 ) , the transmitter power :0-30W, can automatically adjust the servo control
( 2 ) , the output impedance matching :5-800Ω, automatic matching ( more suitable for northern arid , desert soil environment )
( 3 ) , firing from :0.03-8Km, 8Km outside can gradually move
( 4 ) Power supply : 12V

( 5 ) Operating temperature : -20 °C - +60 °C
( 6 ) , the control system : DSP + vector control , support for system upgrade
( 7 ) , regulating systems : digital keyboard control
( 8 ) , Weight : 3.0Kg ( with battery )
( 9 ) , Dimensions : 276mm × 227mm × 98mm

2 , the probe technical indicators:
( 1 ) Sensitivity :-85db
( 2 ) the position deviation : ≤ 5cm
( 3 ) probe depth : ≤ 8m
( 4 ) total distance accuracy: ≤ 0.25% of test distance
( 5 ) Power supply : 9.6V NiMH battery pack
( 6 ) Dimensions : 165 mm × 110 mm × 68mm
( 7 ) Weight : 0.9Kg ( with battery )

3 , Leak technical indicators:

( 1 )  leak detection accuracy : ≥ 0.25mm2
( 2 ) the position deviation : ≤ 5cm;
( 3 ) Power Supply : 9.6V NiMH battery pack
( 4 ) Dimensions : 165 mm × 110 mm × 68mm
( 5 ) Weight : 0.9Kg ( with battery )

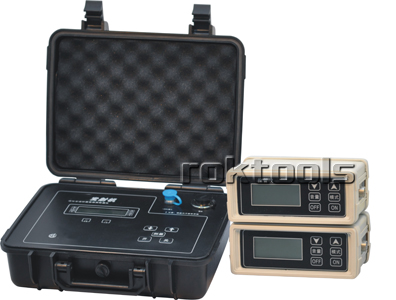

Transmitter 1;

Probe device  1;

 Leak detector 1;

Accessories:
(1) Probe rod                               x1
(2) a detection wire                     x1
(3) an output wire                        x1
(4) a ground wire                        x1
(5) ground rod                            x2
(6) a small rasp                         x1
(7) a magnet                             x1
(8) 12.6V charger                     x1
(9) 9.6V  charger                      x2
(10) Fuse 1A                             x2
(11) a set of random file          x1
