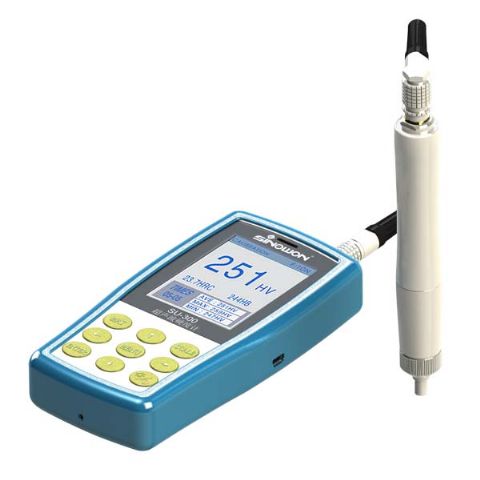

Microscopic Indentation Manual Ultrasonic Hardness Tester
Features:
- Accuracy - ±3% HV, 1.5% HR, 3%HB.
- Microscopic Indentation – Only high-power microscope can observe the indentation.
- Quick Measurement – Result in 2 seconds.
- Large LCD Display – Direct display measurement result, time count, maximum, minimal, average and deviation.
- Operation – Operate well after short training.
- Storage – Save 1000 groups measurement data.
- Simple Calibration – Save 20 groups calibration data for invoking, improve calibration efficiency.
- Interface – Works as per “PLUG AND MEASURE” principle.
- Warranty – 2-year Warranty for main unit (Excludes Probe).
- Includes: Instrument main body; 2Kgf manual Probe HP-2K; Probe Silicon Cap; Accessories Box; Instrument Operation manual; Calibration certificate; Probe cable; USB Cable.
Specification:
|
Technical Specifications
|
|
Loading Force
|
2Kgf (Optional Manual: 1Kgf, 5Kgf, 10Kgf)
(Optional Motorized: 3Kgf, 5Kgf, 8Kgf, 10Kgf)
|
|
Measuring Range
|
HV: 100-1500; HBS: 100-1500; HRC: 20-70; HRB: 55-100; HRA:37-85
|
|
Measuring Accuracy
|
HV: ±3% HV, HR: 1.5% HR, HB: 3%HB
|
|
Data Storage
|
To save 1000 groups of measuring data and 20 groups of calibration data
|
|
Data output
|
RS232 Hyper Terminal / Bluetooth printer
|
|
Hardness Scale
|
Vickers (HV), Rockwell C (HRC), Rockwell A (HRA), Rockwell B (HRB), Brinell (HB)
|
|
Data Display
|
Loading force, testing-times, testing result, average, maximum, minimum, deviation and conversion scale
|
|
Hardness Indication
|
LCD
|
|
Operating Environment
|
Temperature:-10°C~50°C;
Humidity:30°C~80%R.H
|
|
Operating Voltage
|
4.2 V
|
|
Instrument Dimensions
|
160x80x31mm
|
|
Shipping Dimensions
|
320x430x155mm
|
|
Net Weight
|
Approximate 500g (without probe)
|
|
Shipping Weight
|
4.3 Kg
|
