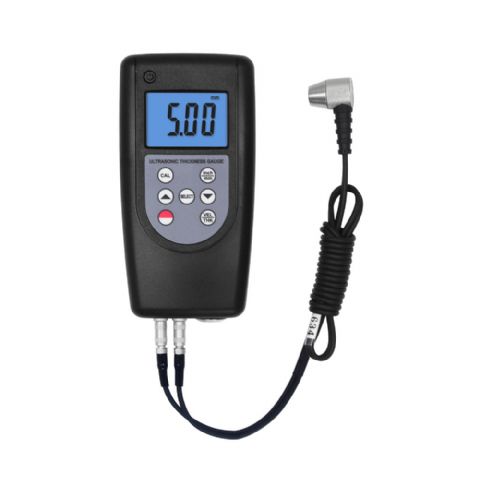

Ultrasonic Thickness Gauge 0.75~400mm
Applications:
*Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features
*Using the latest high performance and low power consumption microprocessor technology.
*Automatic memory material code and sound velocity value, convenient to use.
*Use “USB data output” and “RS-232 data output” to connect with PC.
*Provide “Bluetooth ™ data output” choice.
*Display:4 Digit, 10 mm LCD
*Operating Principle:Ultrasonic
*Measuring Range (metric / Imperial):0.75~400mm (45# steel) (Depend on Probe)
*Battery Indication:Low Battery Indication
*Sound Velocity:1000~9999 m/s
*Lower Limit Steel Pipes:Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
*Calibration Block:Included
*Resolution:0.1mm / 0.01mm / 0.001inch
*Accuracy:± (0.5%n + 0.1)
*Automatic memory material code and the value of sound velocity
*Power off:Auto Power off & Manual Power Off
*Operating Conditions:Temperature: 0~40 °C, Humidity: < 85 %RH
*Power Supply:4 x 1.5 V AAA (UM-4) Battery
*Dimensions:140 x 72 x 34 mm
*Weight:185 g (Not Including Batteries)
