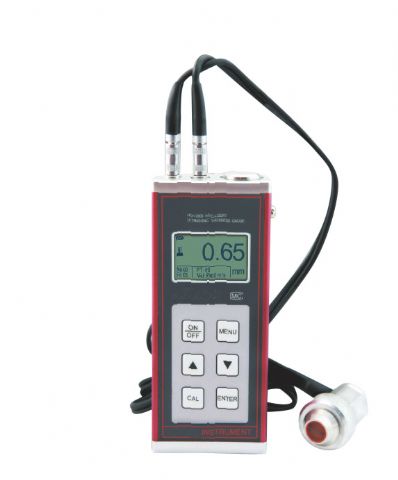

Part No: UT-4201

* Small size, low power consumption,
*Touch buttons, simple operation.
*Automatic proofreading zero,
*The system can correct its own errors.
*Large-screen LCD backlit display.
*Data transmission, RS232 interface,
*Can be connected to a small printer or PC.
*Five kinds of probes can be arbitrarily chosen match
*Automatic backlight

Technical parameters:
-Measuring range 0.7~199.9mm（45# steel）
-Accuracy 0.1mm
-Error value 1% thickness values±0.1mm
-Tempreture of the material -20℃~550 degree（depending on the probe）
-Velocity range 1000~9990 m/s
-Probe Standard equipped with 5MH probe, the probe can also choose the others
-Data processing Can store 600 measurement data, can be connected to a printer and pc
-Power Two 1.5V AAA batteries
-Auto power off Automatic power standby after five minutes
-Display Screen Black and white display Liquid crystal(LCD), 100 *100, Show information Coupled instructions, measurement rate
-Operating environment Temperature -10 ℃ ~ 60 ℃, relative humidity <90



1.host        1

2.the probe (φ8 probe)    1

3.couplant              1

4.Manual     　    1

5.warranty card, certificate   1

6.two AAA batteries      1

7.suitcase          2

8.step test block (optional)     1



Optional accessories
Full series of probe selection

High temperature, cast iron, small diameter probe

Toolbox

Printer

Computer connect cable

Steel	Velocity	Material	Velocity(M/S)
Steel	5900	Chrome	6200
Cast iron	4600	Copper	4700
Brass	4640	Gold	3240
Aluminum	6400	Plexiglas	2730
Stainless Steel	5790	Lead	2400
Tin	3230	Zinc	4170
