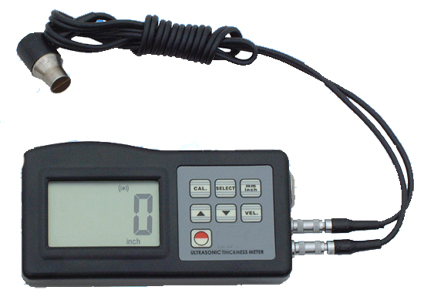

Ultrasonic Thickness Gauge (1.0-200mm,0.05-8inch)

Product Name: Ultrasonic Thickness Gauge (1.0-200mm,0.05-8inch)

Product Numbers: UT-300

Product Specifications: ULTROSONIC

Product Unit: Sound velocity: 500-9000m/s

Product Remark: Ultrasonic Thickness Gauge Resolution: 0.1mm/0.01mm

Product Class:Measuring and Testing Instruments > NDT Instruments > Ultrasonic Thickness Gauges

Product Details

【DateTime:2011-02-14 Browse:】【Font: Big Mid Small】【Print】【Close】

Ultrasonic Thickness Gauge (1.0-200mm,0.05-8inch) Features:

Application: Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Measuring range: (metric/imperial): 1.0-200mm,0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Ultrasonic Thickness Gauge Calibration block: included

Resolution: 0.1mm(UT-300H 0.01mm)

Accuracy: ±(0.5%n+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉),≤90%RH

Dimensions: 120x62x30mm
Weight: 164g(not including battery)
Optional Accessories:
6MФ6mm thin Material probe:Measuring range(steel): 1.0 50.0mm Operating temperature: -10~+60℃

5MФ12high temperature probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
