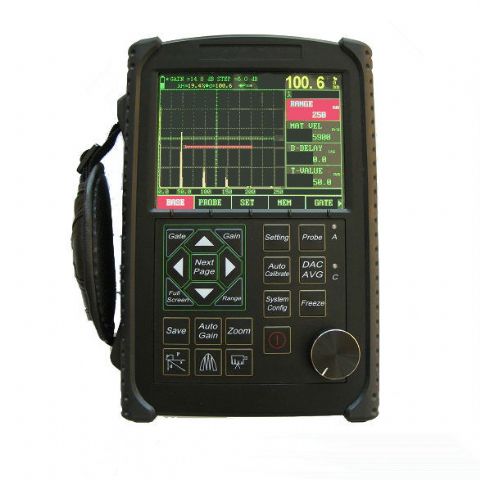

Ultrasonic Flaw Detector with High Speed
Features
• Automated display precise flaw location(Depth d,level p, distance s, amplitude, sz dB、ф);
• Automated switch three staff gauge ((Depth d, level p, distance s);
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
• Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated
• 6dB DAC functions;
• Standards of test for DAC is saved.
• 500 independence setup, any criterion can be input freely, we can work in the scene without test block;
• Big memory of 1000 A graph
• Automated gain and gain scan;
• Peak Hold and Peak Memory;
• B scan;
• AWS D1.1
• Automated make video of test process and play; use USB flash disk,the length of video is unlimited.
• Powerful pc software and reports can be export to excel;
• Li battery, continue working time up to 10 hours;
• The embeded software can be online updated,
• Automated calibration、Automated gain
• DAC,AVG,TCG,B scan,AWS
• High-speed capture and very low noise
• Solid metal housing
• high contrast viewing of the waveform from bright
• Powerful pc software and reports can be export to excel
Other assistant function
• Display freeze;
• Automated echo degree;
• Angles and K-value;
• Lock and unlock function of system parameters;
• Electronic clock calendar ;
• Two gates setting and alarm indication;
• Gate and DAC alarm;
Specifications
Measuring Range (mm)0 ~ 10000
Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3%
Reject 0~80%
Horizontal Linearity Error ≤0.1%
Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings ≥62dB
Zero(μs) 0.0 ~ 99.99
Dynamic range ≥34dB
Port Type BNC / LEMO
Resolving Power ≥36dB
Operating Temperature (℃) -20~50
Frequency Range(MHz) 0.5 ~ 15
Size: 240×156×50
Gain(dB) 0 ~ 120
Weight(kg) 1.0(with battery)
Material Velocity(m/s) 1000 ~ 15000
