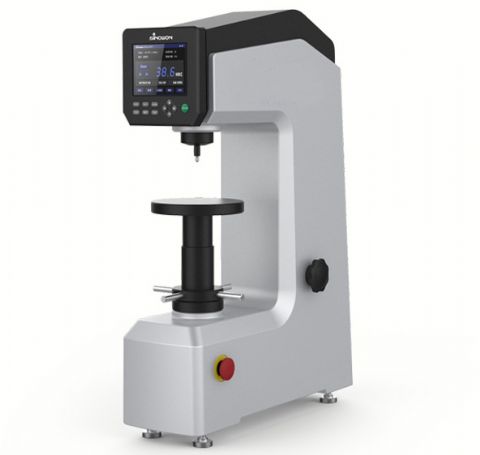

Benchtop Touch Screen Digital Rockwell Hardness Tester
ROHT-5203 is equipped with color screen, the inspector can operate it by finger. The touch screen and motorized loading make it hardness tester more easier. Test results are shown in a large font size making them easy to read.
Application:
- Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
- Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case
hardened steel, and other materials harder than B100.
- Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Features:
- Half automatic hardness tester except for loading preliminary force and adjusting force knob. Operation is very easy with fast response
- Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
- Motorized control of loading, dwell and unloading, eliminates error by manual operation.
- Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improving accuracy.
- Auto hardness conversion to other scales, no need to check conversion table, therefore improving working efficiency.
- Support multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
- Save 2000 single testing results and 1000 group results for reviewing and analysis
- Optional blue tooth mini printer is available.
Specifications:
| Product Name |
Color Touch Screen Digital Rockwell Hardness Tester |
| Model |
ROHT-5203 |
| Rockwell Scales |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR |
| Preliminary Test Force |
10Kgf(98.07N);Permitted Error: ±2.0% |
| Test Force |
60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N);Permitted Error：±1.0% |
| Dwell Time |
Adjustable 1-60s |
| Hardness Indication |
5.2” Touch Screen;Resolution:640x480 |
| Resolution |
0.1HR |
| Loading Control |
Auto Loading/Dwell/Unloading |
| Data Output |
Optional Blue Tooth Mini Printer |
| Hardness Conversion |
HRA,HRB,HBC,HRD,HRF,HBS,HBW,HV,HK,HS,HR15N,HR30N,HR45N,HR15T,HR30T、HR45T,MPA |
| Max. Height Of Specimen |
175mm |
| Instrument Throat |
165mm |
| Dimension(LxWxH) |
546x182x755mm |
| Packing Dimension |
620x460x870mm |
| Power supply |
AC 220V/50Hz;AC110V/60Hz |
| Gross/Net Weight |
120Kg/90Kg |
| Execution Standard |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18 |
Whats in the package:
- Hardness Tester ROHT-5203
- Hardness Block (57-70) HRC
- Hardness Block (20-33) HRC
- Hardness Block (85-100) HRB
- Ø 150mm Flat Anvil
- Ø 60mm Flat Anvil
- Ø 40mm V-shape Anvil
- Accessories Box
- Ø1.588mm Ball Indenter
- Ø1.588mm Steel Ball
- Cone Diamond Indenter
- Weight A
- Weight B
- Weight C
- Power Cable
- Manual
