| Product Name: Rockwell and Superficial Rockwell Hardness Tester Meter |
| Product Numbers: ROHT-5002 |
| Product Specifications: Force 60kgf(588.4N),100Kgf(980.7N),150kgf(1471N) |
| Product Unit: Dwell Time: 2-60s adjustable |
| Product Remark: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV |
| Product Class:Measuring and Testing Instruments > NDT Instruments > Rockwell Hardness Tester |
|

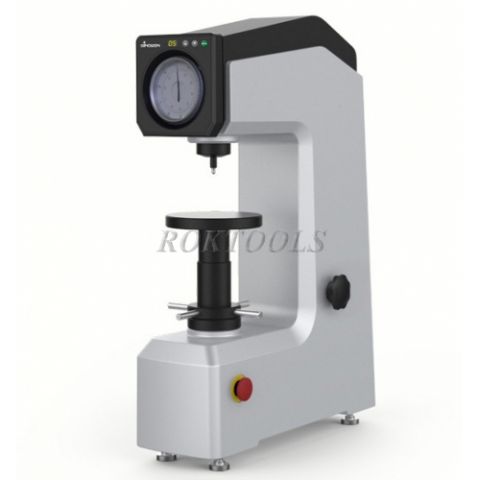

 Product Details Rockwell and Superficial Rockwell Hardness Tester Meter
Features:
- can test both Rockwell and Superficial Rockwell hardness scales.
- Manually switch 3kgf and 10kgf initial force, to test rockwell and superficial rockwell scales.
- Dial reading, resolution is 0.5HR.
- Motorized loading/dwelling/unloading to make precision force and excellent results.
Applications：
- Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
- Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
- Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Specification:
| Product Name |
Electronic Twin Rockwell Hardness Tester |
| Model |
ROHT-5002
|
| Rockwell Scales |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV |
| Rockwell Force |
60kgf(588.4N),100Kgf(980.7N),150kgf(1471N) |
| Superficial Rockwell Scales |
HR15N,HR30N,HR45N,HR15T,HR30T,HR45T HR15W,HR30W,HR45W,HR15X,HR30X,HR45X,HR15Y,HR30Y,HR45Y |
| Superficial Rockwell Force |
15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N) |
| Dwell Time |
2-60s Adjustable |
| Reading |
Dial Reading |
| Resolution |
0.5HR |
| Loading Control |
Motorized loading/dwelling/unloading |
| Max Height of Specimen |
175mm |
| Throat |
165mm |
| Dimension |
546x182x755mm |
| Packing Dimension |
620x460x870mm |
| Power Supply |
AC 220V/50Hz;AC110V/60Hz |
| Gross/net Weight |
98Kg/80Kg |
| Standards |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
|
