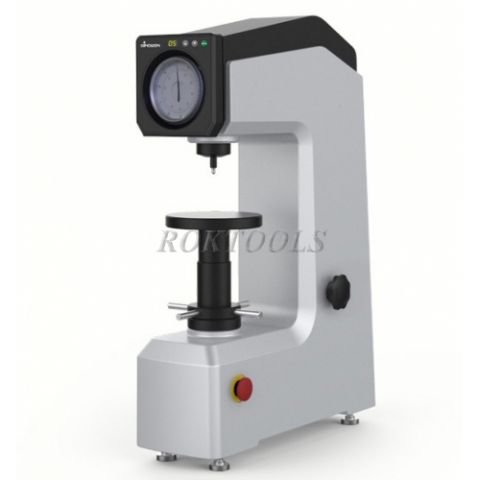

Electronic Load Control Superficial Rockwell Hardness Tester
Features:
- Dila gauge resolution is 0.5HR, It is more accuracy than traditional 1HR resolution;
- Dwelling time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;
- Force knob adopts the metal material to replace the plastic, it largely improves the instrument life span, Not easy to worn out.
- Loading, dwelling and unloading is buffering by electronic motor automatically, doesnt need the operator to handle it , it eliminates the human operation error maximally;
- Intenter protector is available to improve the using lifetime of indenter.
Specification:
| Product Name |
Electronic Superficial Rockwell Hardness Tester |
| Model |
|
| Rockwell Scales |
HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
| Preliminary Test Force |
3Kgf(29.42N) |
| Test Force |
15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N) |
| Dwell Time |
Adjustable 1-60s |
| Hardness Indication |
Analogue Display |
| Resolution |
0.5HR |
| Loading Control |
Electronic |
| Max. Height Of Specimen |
175mm |
| Instrument Throat |
165mm |
| Dimension(LxWxH) |
546x182x755mm |
|
|
620x460x870mm |
|
|
120Kg |
|
|
90Kg |
| Execution Standard |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
Packing list:
- Tester
- Hardness block
- Ø150mm Flat Anvil
- Ø40mm V-shape Anvil
