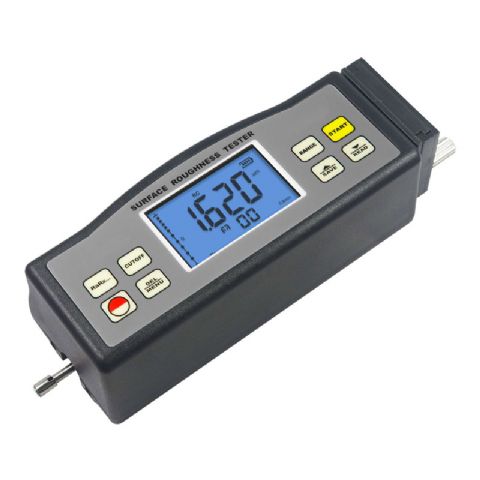

Concrete Surface Texture Tester Roughness Tester Surface Finish Gauge
The Tester is designed for measuring the Concrete Surface roughness in construction site.
Features:
* Conform to four standards of ISO, DIN, ANSI and JIS.
* Different measuring unit: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Portable and Lightweight
* Manual or automatic Power off
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* With Bluetooth output(Optional)
| Standards |
GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1 |
| Parameters |
Ra,Rq,Rz,Rt |
| Measuring Range |
Ra,Rq:0.005~20.00µm Rz,Rt:0.020~200.0µm |
| Accuracy |
≤±10% |
| Fluctuation of Display Value |
≤6% |
| Resolution |
0.001/0.01/0.1 |
| Sensor |
Radius of Probe Pin |
10µm |
| Material of Probe Pin |
Diamond |
| Measurement Force of Probe |
16mN(1.6gf) |
| Probe Angle |
90º |
| Vertical Radius of Guiding Head |
48 mm |
| Maximum Driving Stroke |
17.5mm/0.7inch |
| Cutoff length(l) |
0.25mm,0.8mm,2.5mm |
| Driving Speed |
Sampling |
When Length=0.25mm,Vt=0.135 mm/s |
| When Length=0.8mm,Vt=0.5mm/s |
| When Length=2.5mm,Vt=1mm/s |
| Returning |
Vt=1mm/s |
| Profile Digital Filter |
RC,PC-RC,GAUSS,D-P |
| Evaluation Length |
1~5L Optional |
| Data Memorize |
7 Groups |
|
| Operating Conditions |
Temp:0~50ºC Humidity:<80%RH |
| Power Supply |
Bulit-in Rechargeable Li-ion Battery |
| Dimensioms |
140x52x48mm |
| Weight |
420g |
| Standard Accessories |
Main Unit |
| Standard Sample Plate |
| Standard Sensor |
| Small Screwdriver |
| Power Adapter |
| Carrying Case ( B09 ) |
| Operation Manual |
| Optinal Accessories |
RS-232C Cable with Software |
| Bluetooth Adapter with Software |
| Extension Rod SER-150 |
| Groove Stylus SRP-110 |
| Curvature Probe SRP-120 |
| Measurement Stand SRS-1 |
Standard Package:
Roughness Tester
Standard sample plate
Standard Sensor
Power Adapter
Manual
