Portable Roughness Tester Meter

Part No: ROTE-3203



It is a portable stylus surface roughness shape measuring instrument, applicable to the workshop testing station, laboratory, metrology room environmental detection. Measurement of parameters in line with international standards of the United States, Germany, Japan and is compatible with Britain and other industrial developed country standards. Measurement results can be digital and graphic LCD display, also can be output to the printer.



Features:

*Residual quantity indicator icon, prompting the user to charge;
*Display of the charging process instructions, the operator can understand the degree of charge
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;

*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Display information rich, intuitive, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;
*Working time more than 20 hours of continuous work
*Large capacity data memory, can store 100 groups of original data and waveform.
*Real-time clock settings and display, convenient data recording and storage
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Full metal shell design, sturdy, compact, portable, high reliability.
*Can be in English freely switch
*Can be connected to a computer and printer;
*Optional sensor surface, hole sensor, measuring platform, sensor, an extension rod and other accessories.



Specifications:

Item		Description
The maximum driving trip		17.5mm/0.7inch
Indicating error		Not more than ± 10%
Variation of indication		Not more than 6%
The measured profile		Roughness, waviness, the original contour
Parameter		Ra(0.005μm  ~  16μm), Rz(0.02μm  ~  160μm), Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.
Resolution ratio	The Z axis (vertical)	0．01μm/±20μm
		0．02μm/±40μm
		0．04μm/±80μm
Filter		RC,PCRC,Gauss,ISO13565
The sampling length L		0.25mm,0.8mm,2.5mm,8mm
Evaluation length L		(1-5)l
Internal storage capacity		100 groups of original data
External input / output interface		USB
Electric source		Built-in rechargeable lithium ion battery or external power adapter



The performance index of sensor:

The performance index of sensor:
The detection principle	Current induction
Measuring range	160 μm
Tip radius	5 μm
Tip material	Diamond
Stylus force	4mN(0.4gf)
Stylus angle	90°

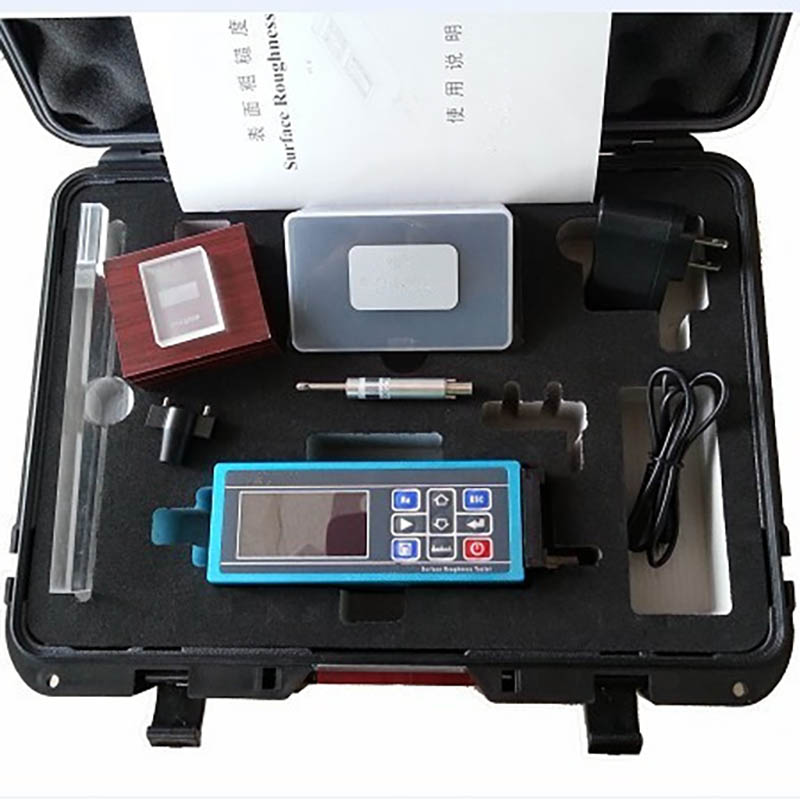

Host                                  1
Standard sensor            1
Reticle temp-let              1
 Template support         1
Movable support            1
 Power adapter              1
USB charging cable     1
instrument container    1
