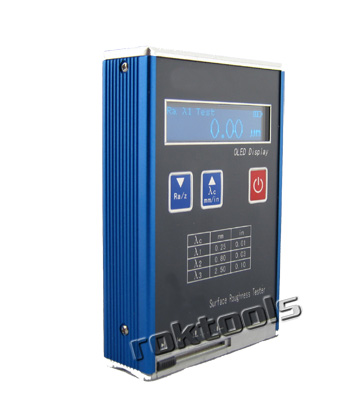

Part No: ROTE-3002



Surface roughness tester is the machine which used to measure the roughness of the surface using probes.

Features:

 *    The roughness of metal and non-metallic surface
 * Pocket-size & economically price
 * Large measuring range suitable for most materials
 * Features external calibration at keyboard
 * Optimized electric circuit design with transducer structure-design,high integrate power, driver and display.
 * Select freely with Ra,Rz, Rq, Rt parameters.
 * It could test ex-circle, flat surface, conical surface and also test groove with length and width larger than 80*30mm.

Main Function:
 * Shape used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly, in line with the design of the new trend.
 * Using high-speed DSP processor for data processing and calculation, measurement and computation speed is greatly improved.
 * Liquid crystal display wide temperature using OLED color display, popular high brightness, no visual angle,, is suitable for various occasions.
 * The lithium ion rechargeable battery, can work for a long time, no memory effect, can while charging, charging time is short, long battery life.
 * Charging and communication using the common USB interface. Using a dedicated charger or computer USB port for charging, convenient and quick.
 * Dot matrix liquid crystal display, interface prompt information rich.
 * Real-time monitoring of lithium battery power and display, and to remind users to charge with charging progress indication.
 * Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use.

Specification:
* Testing parameters(µm ): Ra、Rz、Rq、Rt
* Stroke length(mm): 6
* Sample length(mm): 0.25 ,0.80 ,2.50
* Evaluation length(mm):1.25 ,4.0
* Measuring range(µm ): Ra:  0.05 ~ 10.0  Rz:  0.1 ~ 50
* Error: +/-10%
* Variability: <12%
* Transducer contacting pin round diameter and angle: Contacting pin round diameter:10 µm±1 µm
* Battery: 3.7V Li
* Size: 106 mm×70 mm×24 mm
* Weight: 200g
* Sensor needle static force and its rate of change:

*     Stylus static force: ≤ 0.016N

*     Force measuring rate of change: ≤ 800N/m
* Working conditions:
Temperature:  -20℃~40℃
Relative humidity:  <  90%
No shake and coercivity around

Schedule: sampling length selection recommendation form:



Ra (µm)	Rz (µm)	The sampling length λc(mm)
>5-10	>20-40	2.5
>2.5-5	>10-20
>1.25-2.5	>6.3-10	0.8
>0.63-1.25	>3.2-6.3
>0.32-0.63	>1.6-3.2
>0.25-0.32	>1.25-1.6	0.25
>0.20-0.25	>1.0-1.25
>0.16-0.20	>0.8-1.0
>0.125-0.16	>0.63-0.8
>0.1-0.125	>0.5-0.63
>0.08-0.1	>0.4-0.5
>0.063-0.08	>0.32-0.4
>0.05-0.063	>0.25-0.32
>0.04-0.05	>0.2-0.25
>0.032-0.04	>0.16-0.2
>0.025-0.032	>0.125-0.16
>0.02-0.025	>0.1-0.125



Standard configuration:



Standard configuration



	Name	QTY
1	ROTE-3002	1
2	reticle calibration block	1
3	bracket	1
4	Charger	1
5	data line	1
6	manual	1
7	warranty card	1
8	certificate	1
