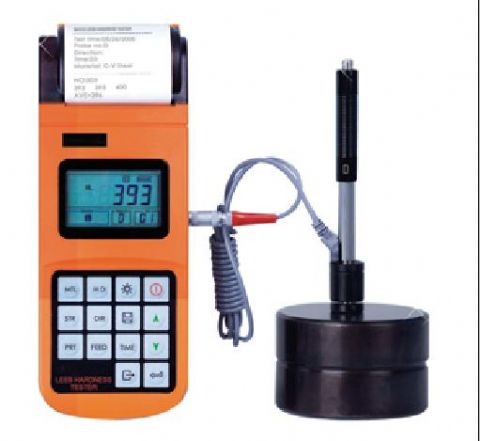

Portable Hardness Tester Features:

Small volume with light weight, it is convenient for taking. Its outline dimensions are  212mm×80mm×32mm.
Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
 Large screen LCD, showing all functions and parameters. With EL background light.
Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.
 Test at any angle, even upside down.
Large memory could store 100 groups (Relative to average times 32～1 ) information including single measured value, mean value, impact direction, impact times, material and
hardness scale etc.
Battery information showing the rest capacity of the battery and the charge status.
Original imported high speed thermal printer support the immediate printing function.It can save data permanently.
NI-MH rechargeable battery as the power source. With rechargeable battery, charging for three hours, it can use for two months. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
Auto power off

Excellent after-sale service system for high quality products--two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece
Technical Specifications

● Error and repeatability of displayed value:

● Measuring range：HLD（170～960）HLD

● Measuring direction：0°~360°
Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
Display：segment LCD
Data memory：100 groups max.（relative to impact times 32～1）
Printing paper: width is （57.5±0.5）mm, diameter is 30mm.
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous working period：about 150 hours（With backlight off, no printing）
Communication interface：USB1.1
 Outline dimensions：212mm×80mm×32mm

Configuration
