Mini Portable Hardness Tester
Zoom Browse
Product Name: Mini Portable Hardness Tester
Product Numbers: HT-2005
Product Specifications: HL200-960 / HRC19-68 / HRB13-101.7
Product Unit: Average / Max. / Min. / value
Product Remark: Impact device: D
Product Class:Measuring and Testing Instruments > NDT Instruments > Portable Hardness Tester
Product Details
【DateTime:2014-12-03 Browse:】【Font: Big Mid Small】【Print】【Close

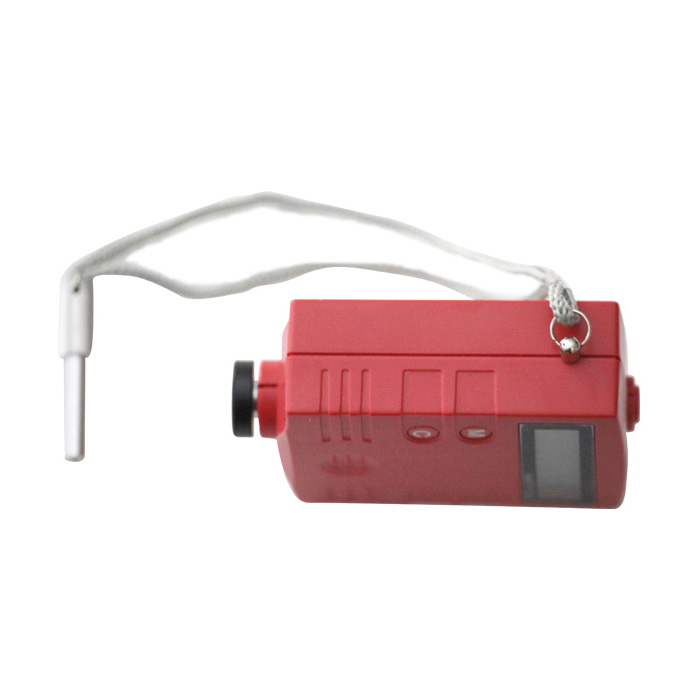

Mini Portable Hardness Tester
Description:
         HT-2005 is an integrated handheld metal hardness tester that combines impact device (probe) and processor into one unit. The size is much shorter than normal impact device, which lets HT-2005 can meet not only normal measurements, but can take measurements at narrowed space as well. HT-2005 is suitable for testing hardness of almost all Ferrous and Non-Ferrous materials. It can be used for industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.
KEY FEATURES
--·Rugged and modular design
--·Palm sized for narrow space
--·High accuracy
--·Built-in impact device
--·For all metallicmaterials
--·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
--·Test in any directions
--·Automatic power on/off
--·Recalibration allowed
--·Comply to standard ASTM A95
Specification

Model

HT-2005

Principle

Leeb hardness measurement

Accuracy

+/-0.6%@HL=800(+/-HRC0.2)

Display

LCD with backlight

Hardness scale

HL/HRC/HRB/HB/HV/HS

Measruing range

HL200-960 / HRC19-68 / HRB13-101.7 / HB20-655 / HV80-940 / HS32-99.5

Impact device

D (Internal)

Materials

9 common metal materials

Memory

99 data

Statistics function

Average / Max. / Min. / value

Recalibration

Allowed by user

Indicator

Low battery

Power off

Auto

Power supply

Ni-MH 9v rechargeable battery

Working environment

-10~+45°C

Dimension (mm)

100x60x33

Net weight (g)

150

  Display: LCD
 Accuracy: +/-3HL at HL=800 (0.4%)
 Measuring range: 170-960HL
 Conversion: HL-HRC-HRB-HB-HV-HSD
 Materials: 9 different common materials
 Memory: 99 data can be stored and re-readable
 Impact device: D
 Power on/off: Auto
 Power supply: DC 9V Ni-MH rechargeable battery
 Dimension: 100×60×33mm
 Weight: 150g
Standard Package:
--HT-2005  main unit 1
--Built in impact device D 1
--Test block D 1
--Cleaning brush 1
--Operation manual 1
--Test Certificate 1
--Carrying case 1
Optional accessories
--Special support rings
--Standard big support ring for
--probe D
--Standard small support ring for
--probe D
--Impact body D
--Test block D with certificate
--Test block D without certificate
--Leather pouch
