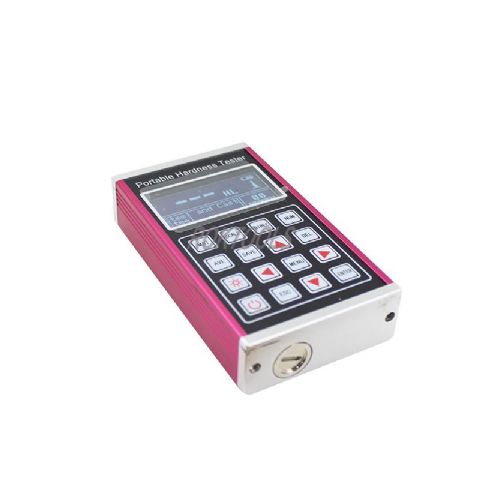

Impact Device Portable Leeb Hardness Tester 600 Group Memory
Features:
- LCD display of 128×64 matrix is
used.
-
Using the D high
precision impact device
-
Converts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).
- English displaying and menu
operating, the operation is easy and convenient.
- Hermetically sealed metal shell, solid and durable,
has excellent resistance to vibration, shock and electromagnetic interference
ability.
-
With USB2.0 interface, multiple communication modes are adopted to meet
customized requirements of various users.
- Equipped with a data processing software, through the
USB interface, can exchange data with computer printing and parameter setting
-
Equipped with 7 types of impact devices(Optional) which need not to be recalibrated
when changing them, the system can identify the type of impact
device automatically.
-
Max 600 groups（impact times:32～1）of data can be stored at internal non
volatile data storage.
- Upper and lower limit of hardness
can be preset; When the tested value exceeds
the limits, alarm will send out automatically to make convenient for
the requirements of batch measurements. Back
light display has been used to make convenient for the use in poor light.
-
Test values software calibration function.
- Material of “cast steel” is
added; HB values can be read out directly when
D/DC impact device is used to measure “cast steel” work piece.
-
Printer be separated from main unit and copies of testing results can be printed
as required.
-
Power is two of AA battery. Continuous working period: approx. 200 h
(no
back light on).
- Software of PC can be installed
according to the requirements of user, the
function will be more powerful to satisfy the more strict demands of quality
control and management.
-
Failure analysis of pressure vessel, steam turbo-generator set and other equipment
-
Narrow testing space where work piece installed
Technical
Specifications:
|
Measuring
Range
|
HLD(170-960) (170-960)HLD，(19-651)HB，(13-100)HRB，(17-68.5)HRC，(59-85)HRA，(80-976)HV、（30~110）HS
|
|
Impact
Directions
|
Up, down, horizontal,
slanting up, slanting down
|
|
Tensile Strenght
|
374 to 2652 N/m 2
|
|
Measuring
Materials
|
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy,
copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
|
|
Hardness
Scales
|
HL, HB, HRB, HRC, HRA, HV,HS.
|
|
Standards
|
ASTM A956、DIN50156-1、GB/T17394-1998
|
|
Display
|
128*64 digital matrix LCD
|
|
Memory
|
600group(32 every group)
|
|
Work Voltage
|
3V( 2 AA alkaline batteries)
|
|
Interface Port
|
USB2.0
|
|
Dimensions
|
125mm*71mm*27mm
|
|
Weight
|
0.3KG
|
|
Continuous
Working Period
|
200 hours (with backlight off)
|
Main
Application：
u The assembled machinery and
permanently installed parts
u Die cavity of molds
u Heavy work piece
u Bearings and other parts
u Cases which require the test
result with normalized original recording
u Material identification of the
metal material warehouse
u Quick tests of large range and
multipoint measuring positions for heavy
Workpiece.
