HT-1002

Applicable materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.

*     LCD display of 128×64 matrix is used.
* Using the D high precision impact device
* Converts to all common hardness scales(HV,HB,HRC,HRB,HRA,HS).
* English displaying and menu operating, the operation is easy and convenient.
* Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability.
* With USB2.0 interface, multiple communication modes are adopted to meet customized requirements of various users.
* Equipped with a data processing software, through the USB interface, can exchange data with computer printing and parameter setting
* Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system can identify the type of impact device automatically.
* Max 600 groups(impact times:32～1)of data can be stored at internal non volatile data storage.
* Upper and lower limit of hardness can be preset; When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
*    Back light display has been used to make convenient for the use in poor light.
* Test values software calibration function.
* Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
* Printer be separated from main unit and copies of testing results can be printed as required.
* Power is two of AA battery. Continuous working period: approx. 200 h (no back light on).
* Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
*     Failure analysis of pressure vessel, steam turbo-generator set and other equipment.

Main Application:
* The assembled machinery and permanently installed parts
* Die cavity of molds
* Heavy work piece
* Bearings and other parts
* Cases which require the test result with normalized original recording
* Material identification of the metal material warehouse
* Quick tests of large range and multipoint measuring positions for heavy Workpiece.



*     Using the D high precision impact device

* Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability.

* Shaw (HS), a (HL), (HB) Brinell, Rockwell (HRC/HRB/HRA), Vivtorinox (HV) and other 7 kinds of hardness value realization of a measurement, automatic conversion

* Has a starting value software calibration function, ensure the data in any industry codes and standards applicable and accurate.

* The optional 7 different impact device, when the replacement does not require calibration, automatic recognition

* Can be pre-set limit value, overrun alarm

* Can store 600 groups of measured value of all Chinese menu, backlit display, convenient operation

* Equipped with a data processing software, through the USB interface, can exchange data with computer printing and parameter setting.

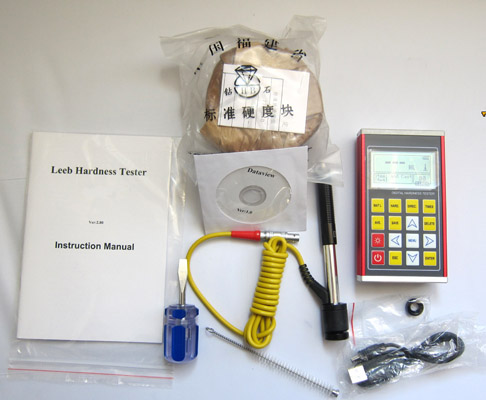

 1 Main body                   1
 2 D type impact device 1
 3 Test block with HLD value 1
 4 Cleaning brush (I)    1
 5 Instruction manual   1
 6 Warranty card  1
 7 Small supporting ring 1
 8 Screwdriver 1
 9 Certificate of conformity  1
 10  Instrument box 1
 11 5 alkaline battery 2
Optional Configuration

 1 Other types of impact devices 7
 2 Other types of support ring 12
 3 Other types of impact ball/body  2
 4 Data processing software 1
 5 Connecting line 1
