Portable Digital Hardness Tester HL/HRC/HRB/HB/HV/HS
Zoom Browse
Product Name: Portable Digital Hardness Tester HL/HRC/HRB/HB/HV/HS
Product Numbers: HT-4040
Product Specifications: Range:200-900HLD
Product Unit: Portable Digital Hardness Tester HL/HRC/HRB/HB/HV/HS
Product Class:Measuring and Testing Instruments > NDT Instruments > Portable Hardness Tester
Product Details
【DateTime:2018-03-13 Browse:】【Font: Big Mid Small】【Print】【Close

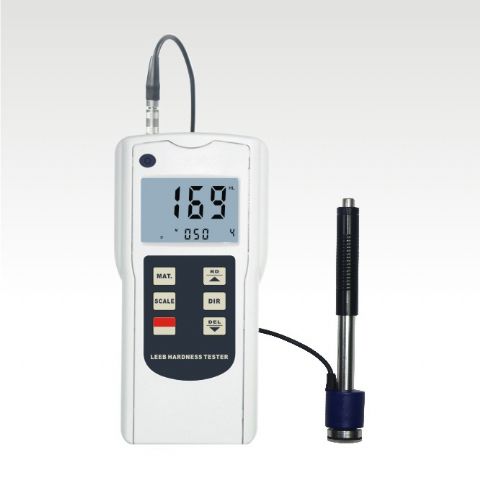

Portable Digital Hardness Tester HL/HRC/HRB/HB/HV/HS

Potable Leeb Hardness Tester Metal Hardness Meter

Features
1.Transform between HL/HRC/HRB/HB/HV/HS.
2.Store the latest 250 groups measurements.
3.Select measured material and way by key.
4.Can show measurements repeatedly to remove the large errors.
5.Use USB data output with connection PC.

Description
The Leeb Hardness Tester applicable for failure analysis of installed machinery or permanent parts of assembled systems, die cavity of molds, heavy work pieces, pressure vessel, steam generator and other equipment, testing surface of a small hollow space, inspection of bearing and other mass produced parts on a production line ,material identification in the warehouse of metallic materials and rapid testing in large range and multi-measuring areas for large-scale work piece.
Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion  Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.

Technical Datas
Accuracy:display error ±0.8% at LD=900
Measuring range:200-900HLD
Measurable material:9 different common material
Operating temperature:-10℃-50℃
Storage temperature:-30℃-60℃
Relative humidity:≤90%
Size:140×70×30mm
Power supply:2×105vAAA Um-4 battery
Weight:130g(not including batteries)  Package: 4.3KG
