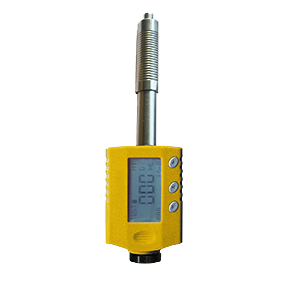

Pen Type Portable Metal Hardness Testers
Description:
HT-2007 is an advanced state-of-the-art integrated palm sized metal hardness tester which incorporate impact device and controller into one unit. Using our patent “two coils” technology, HT-2007 gives out extraordinary high accuracy up to +/-2 HL and universal angle. It is no need to set up impact direction when taking
measurements by any angle. HT-2007 will be used easily by menu operation even without operation manual. Its battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.
Main Features:
--Integrated design , easy operation
--Digital with high contrast LCD display
--High accuracy with patient technology: +/-2 HL (or 0.3% @HL800)
--Memories with 300 data, data can be recalled easily
--Customer re-calibration allowed
--3.7 V Li-ion rechargeable battery , it can be charged by USB or power source
--Statistics value can be calculated automatically
--With strength conversion value
|
Model
|
HT-2007
|
|
Principle
|
Leeb hardness measurement
|
|
Accuracy / Repeatability
|
±0.3% @ HL=800 / ±2HL
|
|
Display
|
LCD with back light
|
|
Hardness scale
|
HL / HRC / HRB / HB / HV / HS / HRA /σb
|
|
Measuring range
|
HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm2
|
|
Impact device
|
D
|
|
Materials
|
10 common metal materials
Steel/Cast steel, Alloy tool steel, Stainless steel, Grey cast iron GG, Nodular cast iron, Cast aluminum,
Copper-Zinc brass, Copper aluminium, Wrought copper, Forged steel
|
|
Memory
|
300 data can be saved and re-readable
|
|
Statistics function
|
Average / Max. / Min.
|
|
Re-calibration
|
Allowed by user
|
|
Indicator
|
Low battery
|
|
Interface
|
USB for charging
|
|
Power supply
|
3.7V Li-ion rechargeable battery
|
|
Working environment
|
-10ºC~+45 Cels
|
|
Dimension (mm)
|
148x44x22
|
|
Net weight (g)
|
110
|
|
Standards
|
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
|
Standard Package:
Main unit 1
Internal impact device D 1
Test block D 1
Cleaning brush 1
3.7 V Li-ion rechargeable battery (internal) 1
USB cable 1
Operation manual 1
Test Certificate 1
Carrying case 1
Optional accessories:
Special support rings
Standard support ring for probe D
Small support ring for probe D
Impact body D
Carbide ball tip D
Test block D with certificate
Charger
