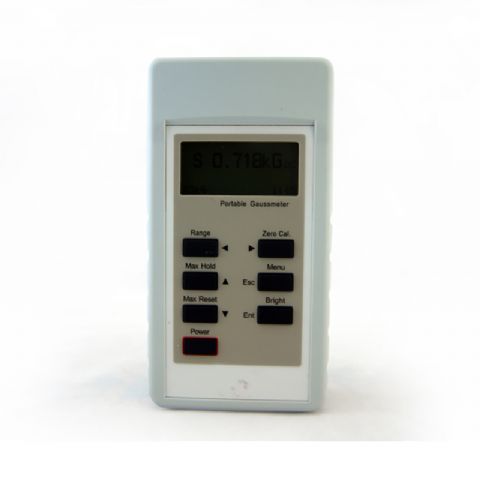

Handheld Digital Gaussmeter Teslameter

Whats new?

• Handheld, small in size, easy to take and carry
• Auto power off
• DC/AC magnetic field Measurement
• DC/AC maximum value hold
• DC field polarity judge function
• Probe automatic zero
• Units: G, T, Oe, A/m
• Transverse probe/ axial probe with independent calibration value
• Back light
• High Accuracy
• With transverse probe

Specification:

Power four AA batteries (alkaline battery is recommended)

Display 3¾digital LCD display

DC Measurement

Range:30kG, 3kG, 300G

Resolution:10G, 1G, 0.1G

Accuracy:(2%of reading +0.1%of range)  (B<20kG, probe temperature15-35℃)

Temperature coefficient: Maximum ±(0.06% of reading+0.01G)/℃  probe temperature 15-35℃

Display update rate:2.5 rgd/s

AC Measurement

Range: 3Kg, 300G

Resolution:1G, 0.1G

Bandwidth:10Hz-10kHz (sine magnetic field)

Accuracy:±(5%of reading +0.2%of range)  (effective range, 1kHz sine magnetic field)

Effective measurement range >0.33%range

Rated measurement range >1%range

Zero deviation :<0.2%range

Temperature coefficient:Maximum ±(0.06%of reading)/℃  probe temperature 15-35℃

Display update rate:2.5 rgd/s

Application Environment

Instrument:15-35℃(rated accuracy)  35-45℃ (accuracy reduced by 0.2%)

Probe:15-35℃ (rated accuracy)  35-45℃(accuracy reduced by 1%)

Humidity:35~75%

Interface:5-core probe socket

Dimension: L173*W91*T42mm

Packing List:

Gauss Meter 1 pcs

Hall probe   1 pcs

Manual    1
