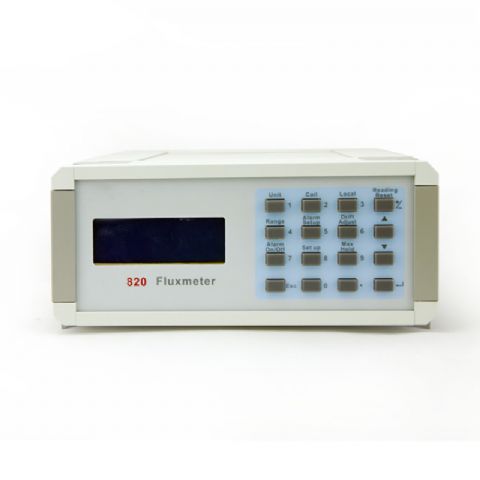

| Product Name: Digital Magnetic Flux Meter |
| Product Numbers: GSME-820 |
| Product Specifications: High reliability |
| Product Unit: With superior drift suppress function |
| Product Remark: Embedded microcomputer control |
| Product Class:Measuring and Testing Instruments > NDT Instruments > Fluxmeter |
|
 Product Details
Features:
-
16-key keyboard, with multiplexing function
-
High reliability
-
Embedded microcomputer control
-
4 3/4 digit display resolution
-
Can store parameters of five coils
-
With superior drift suppress function, high anti-noise
-
RS-232, parallel output interface
-
It can be remote control by computer
-
With function of analog signal output
-
Hardware peak hold
-
High and low threshold alarm function for local and remote control
-
LCD display with back light
Specifications
|
Measuring
|
Input signal No.: 1
Input type: 2 terminal, ground for reference
Input resistance: 100 k or 10 k
Maximum input voltage: 60 V
Display refresh rate: 3 times/s
|
|
DC Measurement
|
Resolution: 4¾ digits
Integrating capacitor: 1 µF
|
Input resistance
|
100 k
|
10 k
|
10 k
|
10 k
|
|
Range
|
400mVs
|
40mVs
|
4 mVs
|
0.4mVs
|
|
Resolution
|
0.1 mVs
|
0.01 mVs
|
0.001 mVs
|
0.0001 mVs
|
Accuracy : Migration ±10 µVs ±DC integral drift
Threshold ± 0.25% readings (maximum change rate <10Vs/s)
Min. input: dφ/dt: 20 µVs/minute
Max. input: dφ/dt: 60Vs/s
Integral migration: ±1µVs/minute
|
|
DC Peak Value
|
Resolution: 4¾ digits
Integrating capacitor: 1 µF
|
Input resistance
|
100 k
|
10 k
|
10 k
|
10 k
|
|
Range
|
400mVs
|
40mVs
|
4 mVs
|
0.4mVs
|
|
Resolution
|
0.1 mVs
|
0.01 mVs
|
0.001 mVs
|
0.0001 mVs
|
Accuracy : Migration ±100 µVs ±DC integral drift
Threshold ± 5% readings (maximum change rate <10Vs/s)
Max. input: dφ/dt: 60Vs/s
|
|
Front Panel
|
Display: LCD display with back light function
Display resolution: 4¾ bit
Display refresh rate: 3 times/s
Display unit: Vs, WbN, Wb, Gs, T, Oe, A/m, Wb*cm^2,
Unit number: µ, m, K, M,
Keys: 16 key keyboard, with the multiplexing function
|
|
Relay
|
Relay quantity: 3
Methods: normally open, normally closed
Contactor load: 30 V DC at 2 A
Action: high and low alarm consistence , can be manually operated.
Monitor output range: ± 1V
Accuracy: ± 1% of display value of ± 10 mV
Minimum load resistance: 1 K
Connector: DB25 core plug.
|
|
General
|
Environment temperature: -15 ~ 55 ° C.
Power supply requirements: 100, 120, 220, 240 VAC, +5% -10%, 50 or 60 Hz, 50 VA
Size: 240mm W * 345mm L * 106 mm H
Weight: approx. 4 kg
|
Packing list:
Flux Meter 1 pcs
Power line 1 pcs
Manual 1 pcs
Carry Box 1 pcs
|
|
