2-in-1 Digital Display Electromagnetic Radiation Nuclear Detector
Zoom Browse
Product Name: 2-in-1 Digital Display Electromagnetic Radiation Nuclear Detector
Product Numbers: BR-9C
Product Specifications: Sensitivity: 80cpm/μsv/(Co-60)
Product Unit: Geiger Counter EMF
Product Remark: Cumulative range: 0-99.999msv
Product Class:Measuring and Testing Instruments > NDT Instruments > EMF Meter
Product Details
【DateTime:2021-09-19 Browse:】【Font: Big Mid Small】【Print】【Close

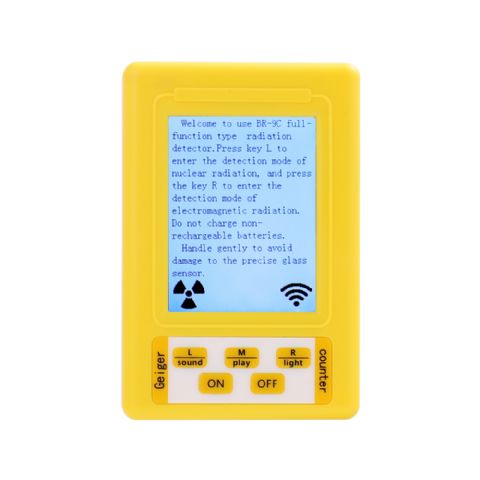

2-in-1 Handheld Digital Display Electromagnetic Radiation Nuclear Detector EMF Geiger Counter

     The BR-9C is a full-functional type tester that detects electromagnetic radiation and nuclear radiation. It is easy to use and powerful.
Large screen display makes it easier to read data, and the buttons are easy to operate.
The frame is made of fine quality ABS, which has fine heat resistance and cold resistance, high strength and fine toughness.
High sensitivity, wide measuring range, has a long service life.
Both electromagnetic radiation and nuclear radiation can be detected. It can meet the needs of home life detection, substation detection, mobile signal tower detection, etc. It can also be applied to material inspection, environmental test, radiology protection, radiopharmaceutical screening, etc.
With mute, alarm, particle sound selection button, test, mean value reset retest selection button, backlight can be turned on or off.

Specifications:
Material: ABS
Color: yellow
Screen size: 57 * 43mm / 2.2 * 1.7in
Electromagnetic radiation test:
Test range:
Power density: 0-99.999μw/c㎡
Electric field intensity: 0-999.99v/m
Magnetic field intensity: 0-99.999μT
Test accuracy:
Power density: 0.001μw/c㎡
Electric field intensity: 0.01v/m
Magnetic field intensity: 0.001μT
Frequency range:
Power density: 50MHz-5GHz
Electric field intensity: 20Hz-100MHz
Magnetic field intensity: 20Hz-1MHz
Nuclear radiation test:
Sensor type: energy compensation type GM tube
Detectable types: Beta, Gamma, X-ray
Energy range: 20kev~3.0mev≤±30%(137Cs-)
Sensitivity: 80cpm/μsv/(Co-60)
Test accuracy: 0.01μsv/h
Real-time range: 0-99.99μsv/h
Cumulative range: 0-99.999msv
Real-time error: ≤10%
Mean error: ≤3%
Battery: 3 * AA 1.5V battery or 3 * 1.2V rechargeable battery (not included)
Charging: USB 5V 2A input
Charging time: ≥4 hours
Item size: 105 * 70 * 30mm / 4.1 * 2.8 * 1.2in
Item weight: 105g / 3.7ounce
Package size: 150 * 100 * 55mm / 5.9 * 3.9 * 2.2in
Package weight: 169g / 6.0ounce
