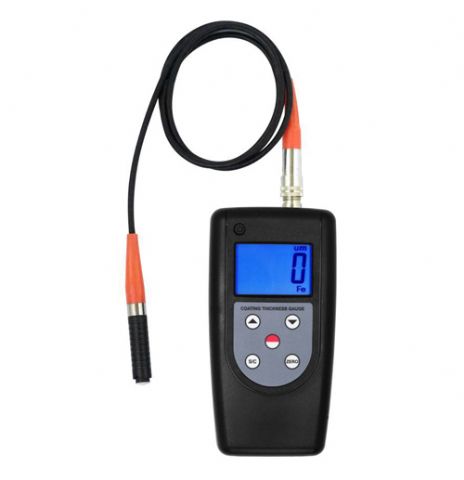

Portable Electronic Micro Coating Thickness Gauge Meter F Probe
Features:
* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: magnetic induction (F).
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type, measurements can be more flexibility.
Specification:
| Operating Principle |
Magnetic Induction (F) |
| Measuring Range |
0~200 um / 0~8 mil |
| Resolution |
0.1 um |
| Min. Radius Workpiece |
convex 2 mm / concave 4 mm |
| Min. Measuring Area |
2 mm |
| Min. Sample Thickness |
0.1 mm |
| Accuracy |
± 1~3%n or ± 2.5 um |
| Auto Power Off |
|
| Metric / Imperial |
Convertible |
| Battery Indicator |
Low Battery Indicator |
| Operating Conditions |
Temp. 0~40 °C, Humidity: 10~90 %RH |
| Power Supply |
4 x 1.5 V AAA (UM-4) Battery |
| Dimensions |
140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
| Weight |
215 g (Not Including Batteries) |
Whats in the package:
1. CTME-1210-200F Tester
2. Probe (F Type)
3. Calibration Base Set (F Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
