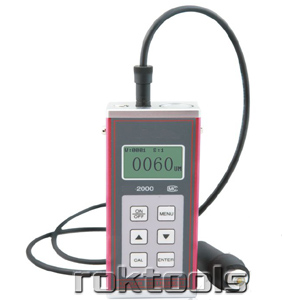

2000A coating thickness gauge is the fruit of high technology. It applies to the single chip microcomputer technology. It has high precision, digital display, stable indication and low power consumption. It can be easily operated and the keys should be pressed by touch. With a small volume and light weight, it provides sing probe full range measurement. It also has such functions as storing, reading, statistic, low-power indication, system/zero-scale/two-point calibration. Its properties have reached the international advanced levels of contemporary instruments of the same kind.



Techonoligical parameters:
1.measurement scope: 0~1200um
2.measurement error: <3%±1um
3.minimum indication: 1um
4.display means: liquid crystal display with four digits
5.power supply: two 1.5v batteries
6.power consumption: the maximum power consumption is 100mw
7.external dimension:  51mm*126mm*27mm
8.weight: 160g( including batteries)
9.environment temperature when it is used:　0℃~+40℃    relative humidity: less than 90%
10.the minimum thickness of the matrix: 0.5mm

11.the minimum plane of the matrix:  7mm
12.the minimum curvature radius: convex:1.5mm   concave:6mm
13.undervoltage indication:

14. Storage: 600

Main functions:
(1)measurement:  single- probe full-range measurement
(2)storage and deletion: it can store 600 measured data, delete some suspicious data and delete all the data that have been stored.
(3)reading: it can read the measured data that have been stored.
(4)statictic: there are three statistical values—the average value, the maximum value and the minimum value
(5)calibration: zero-scale calibration, two-point calibration and system calibration
(6)electric quantity: it has the function of displaying low power
(7)buzz indication: there is buzz indication in operation
(8)print: with a micro-printer it can print the measured data
(9)powering off: there are two means of powering off—automatic powering off and manual powering off





Part No.	Range	Resolution
CTME-2000A	0-1200um	1um
CTME-2000C	0-5000um	1um
CTME-2000D	10-9000um	1um
