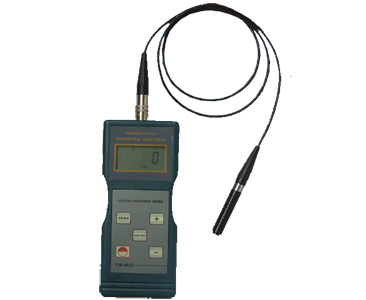

Coating thickness Gauge(Meter) Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Operating principle: eddy current (NF)
Measuring range:0-1000um
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AA (UM-3)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉),≤90%RH
Dimensions: 160x68x32mm
weight: 250g(not including battery)
Optional accessories: other range 0-200um to 5000um
