Features:

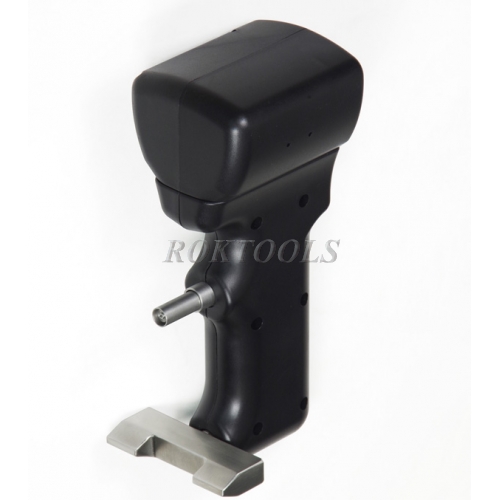

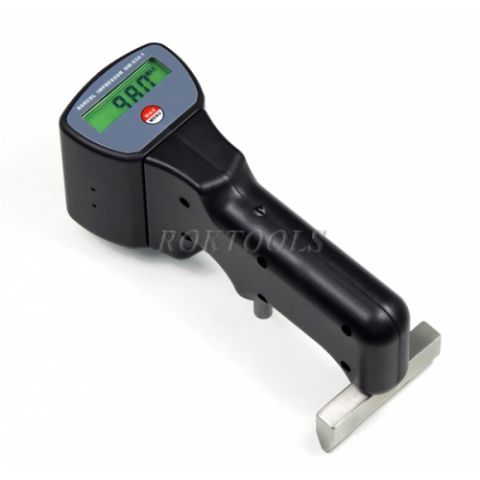

* A digital indentation hardness tester, is the latest design and development of our company.
* It is featured with a balance positioning, large display for hardness value, and a non disassembly calibration and adjusting.
* Better stability, convenient calibration, and high accuracy
* Easy to use, no experience needed.
* Wider measuring range equivalent to the Brinell Hardness of 25~150HB.
* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
* With the max hold function, Tracing the Max value automatically
* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
* Provide Bluetooth data output choice( optional)
* Strong Structure
Specification:
| Model |
BAIM-2001 |
| Range |
0~100Hba, Amount to 25~135HBW |
| Resolution |
0.1HBa |
| Indication Error |
81~88HBa ±1HBa |
| 42~48HBa ±2Hba |
| Repeatability Error |
81~88HBa ±1.5HBa |
| 42~48HBa ±2.5HBa |
| Maximum Hold |
√ |
| Operating Condition |
Temperature: 0~50°C |
| Humidity: <80%RH |
| Power Supply |
2 x 1.5 V AAA (UM-4) Battery |
| Weight |
390g (Not Including Batteries) |
Packing List :
1. Tester
2. Pins (2)
3. 2 Standard Testing Blocks
4. Pin Length Calibration Block
5. Screw Driver
6. Spanner
7. Carrying Case
8. Operation Manual( English)
Optional Accessories:
1. Bluetooth dataout put with software (optional, not standard
