Auto Measurement Correction Thermal Camera
Zoom Browse
Product Name: Auto Measurement Correction Thermal Camera
Product Numbers: THIM-5006
Product Specifications: 120x120
Product Unit: Inexpensive
Product Remark: IR and visual image changed fast, Dual band image
Product Class:Measuring and Testing Instruments > Industrial Instruments > Thermal Imagers
Product Details
【DateTime:2018-12-30 Browse:】【Font: Big Mid Small】【Print】【Close

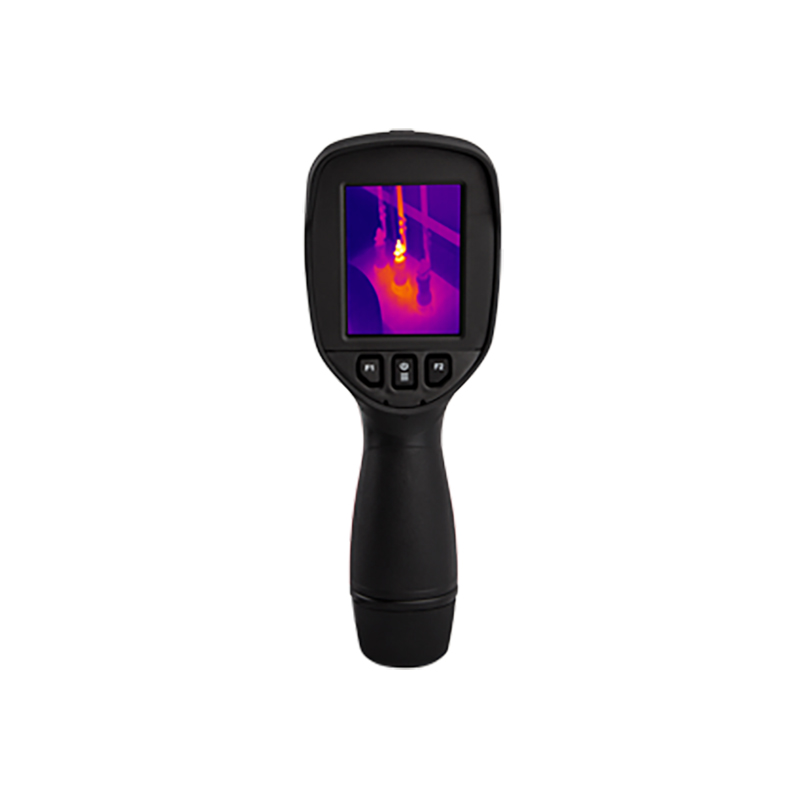

Auto Measurement Correction Thermal Camera

Features:

--Light Weight, Portable

--Resolution: 120*120

--Visual light lens

--4 Color palette

--Image adjustment

--Measurement correction

--Built-in memory

--3 hours continuous operation rechargeable battery

--Auto-shut down


Specification

Item

Specification

THIM-5006

Detector

Type

Uncooled FPA

Resolution

120x120

Spectral range

8-14um

Frame rate

50 Hz

Thermal sensitivity

0.06℃@30℃

Lens

FOV

33°x33°

Focus range

0.5m~∞

Focus method

Focus-free


Spatial resolution

5mrad

Visual light lens

Yes

Image display

LCD

3.2" TFT LCD,240x320

Color palette

4 colors

Image display

IR and visual image changed fast, Dual band image    enhancement processing

Image adjustment

Auto

Measurement

Measurement range

-20℃~    +250℃

accuracy

±2℃    or ±2%

Measurement correction

Auto

Measurement mode

Fixed center, screen max/min temperature,    temperature alarm(voice ,color)

Emissivity     correction

Variable from 0.01 to 1.0

Setup function

Date/time/format, temperature unit℃/℉/K,    language

Image storage

storage card

Built-in memory, up to 5000 images

Storage method

Manual, Auto single file saving, IR and visual    image fusion saving

Image format

JPEG format,with    the original thermal data included

Voice annotation

60 seconds (saving with thermal image)

Power supply system

Battery

Li-Ion, rechargeable

Battery operating time

3 hours continuous operation

Battery charging mode

Random charge with USB slot

Power saving

Auto dormancy, auto-shut down

Interface

Power interface

Mini-USB

Date transmission

Mini-USB

Environment

Operating temperature

-15℃~+50℃

Storage temperature

-25℃~+60℃

Humidity

≤90%

Encapsulation

IP54

Anti-shock

25G, IEC68-2-29

Anti-vibration

2G, IEC68-2-6

Drop

1.5meter

Safety specification

Electromagnetic compatibility

Meet to the standards of CE certification

Physical characteristic

Dimension

240*88*135mm (H*W*D)

Weight (with battery)

510g

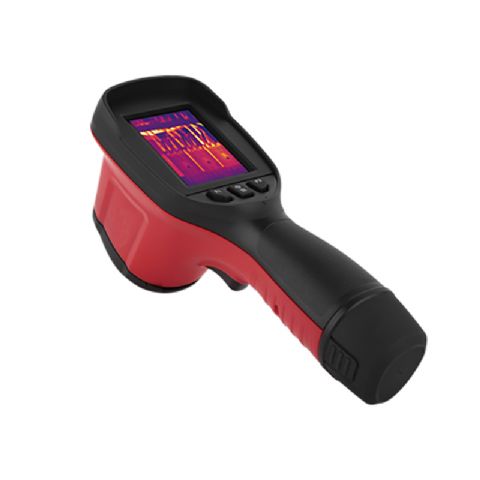

Thermal imaging camera
