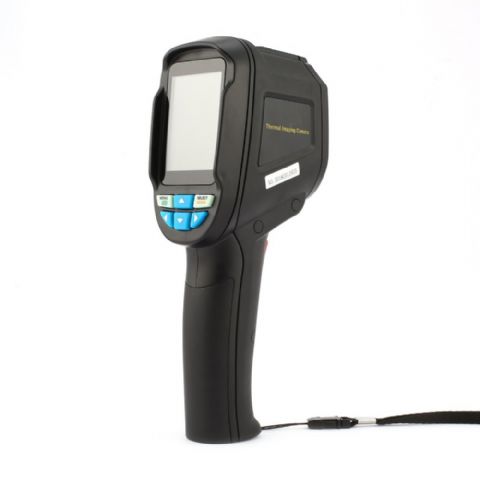

Thermal Imager IR Thermal Imaging Camera
Zoom Browse
Product Name: Thermal Imager IR Thermal Imaging Camera
Product Numbers: THIM-04
Product Specifications: Temperature Range: -20℃ to 300℃
Product Unit: Thermal Sensitivity: 0.07 cel degree
Product Remark: Full infrared and full vision Visible image with 25% step length
Product Class:Measuring and Testing Instruments > Industrial Instruments > Thermal Imagers
Product Details
【DateTime:2018-05-21 Browse:】【Font: Big Mid Small】【Print】【Close
Thermal Imager IR Thermal Imaging Camera
Specification:

-Temperature Range: -20℃ to 300℃(-4℉ to 572℉)
-Measuring Accuracy: ±2.5 degree or ±2.5%
-Emissivity: Adjustable from 0.1 to 1.0
-Image Frequency: 8HZ
-Wavelength Range: 8-14μm
-Color: Black
-Material: ABS
-Display: 2.4 inch full color screen
-Infrared Image Resolution: 220 * 160
-Resolution of visible image: 0.3 million pixel
-Total Pixel: 35200
-Field Angle / Shortest Focal Length: 27°×35°/0.5m
-Thermal Sensitivity: 0.07℃
-Measuring Mode: Thermopile
-Focus Mode: Fixed
-Color Palette: Rainbow, iron oxide red, cold color, black & white, white & black
-View Option: Full infrared and full vision Visible image with 25% step length
-Image Storage Medium: Built-in 4G
-Image Format: JPG
-Set Control: Unit Adjustment/Language/Date Time Format/Automatic Power-off
-Automatic Power-off Time: Selectable 5 mintues/20 minutes/ not power off automatically
-Battery Type: 4 * 1.5V AA Battery (Not Included)
-Battery Service Life: 2 hours
-Certification: CE, RoHS
-Vibration Resistance: 2G, IEC, 60068-2-6
-Anti-dropping: 2M
-Operating Temperature: 0℃ to 50℃
-Storage Temperature: -40℃ to 80℃
-Relative Humidity: < 85%RH
-Item Size: 62 * 95 * 212mm / 2.44 * 3.74 * 8.35in
-Item Weight: 242g / 8.55oz
-Package Size: 27.5 * 18.6 * 11.2cm / 10.8 * 7.3 * 4.4in
-Package Weight: 881g / 31.09oz

Package List:
1 * Thermal Imaging Camera
1 * User Manual
1 * Drop Resistance Rope
1 * Protection bag
Note: Package excluded batteries.  Customers can buy them in your local market.
