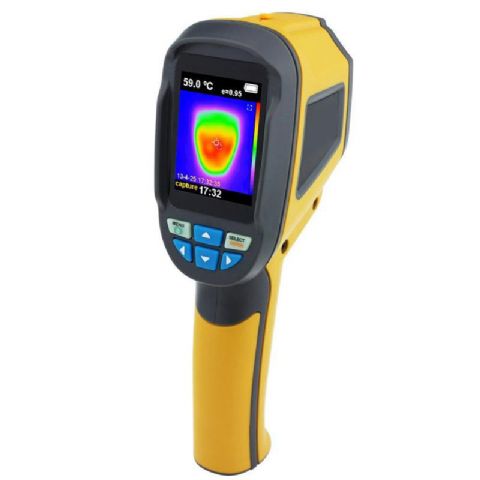

Cheap IR Infrared Thermal Camera Thermal Imaging Camera
Zoom Browse
Product Name: Cheap IR Infrared Thermal Camera Thermal Imaging Camera
Product Numbers: THIM-03
Product Specifications: 80*80
Product Unit: hermal Sensitivity: 0.5C
Product Remark: Total Pixel: 6400
Product Class:Measuring and Testing Instruments > Industrial Instruments > Thermal Imagers
Product Details
【DateTime:2018-05-21 Browse:】【Font: Big Mid Small】【Print】【Close
Cheap IR Infrared Thermal Camera Thermal Imaging Camera


Specification:
-Temperature Range: -20C to 300C(-4F to 572F)
-Display: 2.4 inch full viewing angle high-resolution color screen
-Resolution: 80 * 80
-Resolution of visible image: 0.3 mega pixels.
-Total Pixel: 6400
-FOV/Shortest Focal Length: 20× 20/0.5m
-Thermal Sensitivity: 0.5C
-Measuring Mode: Thermopile
-Measuring Accuracy: ±2% or ±2C(±4F)
-Wavelength Range: 8-14μm
-Emissivity: 0.1-1.0 Adjustable
-Image Frequency: 6HZ
-Focus Mode: Fixed
-Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
-Vision Option: 5 kinds of full infrared to the full visual, mixing visible and infrared.
-Image Storage: SD card(4G)
-File Format: bmp
-Set Control: Unit Adjustment/Language/Date Time Format/automatic shut down
-Battery Type: 4 * 1.5V AA battery (Not Included)
-Battery Life: 6 Hours
-Auto Power-off Time: 12 Minutes
-Authentication: CE, RoHS
-Operating Temperature: -5C to 40C (23F to 104F)
-Storage Temperature: -20C to 50C (-4F to 122F)
-Relative Humidity: 10%RH to 80%RH
-Item Size: 21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
-Item Weight: 231.2g / 8.2oz
-Package Size: 27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
-Package Weight: 927g / 32.7oz

Package Lists:
1 * Thermal Infrared Imager
1 * SD Card(4G)
1 * User Manual
1 * Drop Resistance Rope
1 * Protection bag
