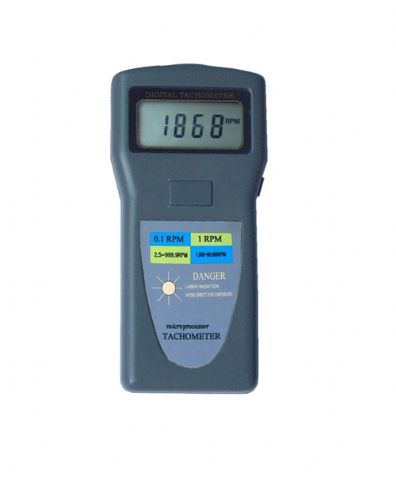

Description: Used to measure rotative velocity, frequency of motor. Applicable to the product departments of motor, fan, paper-product, chemical fiber, washing-machine, automobile, airplane, steamer etc.



    * Wide measuring range and high resolution.
    * The last value / max. value / min. value will be automatically stored in memory.
    * The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.

    * Measuring RPM is safe & accurate without attachment to object.
    * Digital display with no guessing errors.
Specifications:

Measuring Range		2.5 ~ 99,999 r / min
Resolution		0.1 r / min (2.5 ~ 999.9 r / min)   1 r / min (Over 1000 r / min )
Accuracy		± (0.05% n + 1 d)
Sampling Time		1.0 s （Over 60 r / min ）
Test Range Select		Automation
Memory		Max / Min / Last Value
Time Base		Quartz Crystal
Laser Tach Detecting Distance		50 ~ 250 mm / 2 ~ 10 inch (Typical), Max. 600 mm / 14 inch
Power Consumption		80 mA （Testing）
Operating Temperature		0 ~ 50 °C
Power Supply		4 x 1.5 V AA size (UM-3) battery
Dimensions		145 x 74 x 32 mm
Weight		260 g （Including Batteries）



Package:

1. Main Unit

 2. Carrying Case(B01)

 3. Operation manual

 4. Reflective tape 350mm
