Single-Axis Voltage Output Sensor Inclinometer

Product Name: Single-Axis Voltage Output Sensor Inclinometer

Product Numbers: INCL-51011

Product Specifications: Range: +/-1~+/-180 Optional

Product Unit: Resolution: 0.01 Degree

Product Remark: Output: 0-5V

Product Class:Measuring and Testing Instruments > Industrial Instruments > Inclinometer Sensor

Product Details

【DateTime:2016-01-18 Browse:】【Font: Big Mid Small】【Print】【Close】

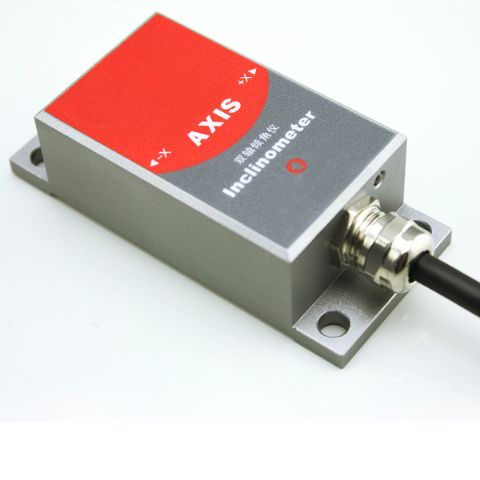

Single-Axis Voltage Output Sensor Inclinometer

Part No: INCL-51011

Features:

Single Axis

High Resolution up to 0.01 Degree

IP67 protection

Fast Respose time

Anti-vibration

Small Size

Shockproof

Built in(MEMS) micro

Specification:

Parameters	Conditions	INCL-51011-10	INCL-51011-30	INCL-51011-60	INCL-51011-90	UNIT
Measuring range		±10	±30	±60	±90	°
Measuring axis		X	X	X	X
Zero output	0° output	2.5	2.5	2.5	2.5	V
Resolution		0.01	0.01	0.01	0.01	°
Absolute accuracy		0.02	0.05	0.08	0.1	°
Long termstability		0.05	0.05	0.05	0.05
Zero temp. coefficient	-40～85°	±0.006	±0.006	±0.006	±0.006	°/℃
Sensitivity temp. coefficient	-40～85°	≤100	≤100	≤100	≤100	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response time		0.05	0.05	0.05	0.05	s
Response frequence		1～20	1～20	1～20	1～20	Hz
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100M
Shockproof	100g@11ms, 3Times/Axis(half sinusoid)
Anti-vibration	10grms、10～1000Hz
Protection glass	IP67
Cables	Standard 1M length, wearproof, grease proofing, wide temperature, Shielded cables4*0.4mm2
Weight	110g(without cable)
