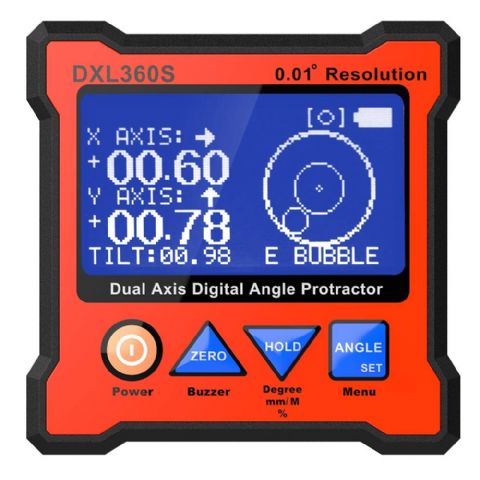

Digital Inclinometer 0.01 Degree Gauge Sensor Clinometer Slope
Zoom Browse
Product Name: Digital Inclinometer 0.01 Degree Gauge Sensor Clinometer Slope
Product Numbers: INCL-DXL360S
Product Specifications: Single Axis: 360°
Product Unit: Response Time:<0.4 second
Product Remark: Resolution:0.01°
Product Class:Measuring and Testing Instruments > Industrial Instruments > Industrial Digital Inclinometer
Product Details
【DateTime:2023-07-08 Browse:】【Font: Big Mid Small】【Print】【Close

Digital Inclinometer 0.01 Degree Gauge Sensor Clinometer Slope

Specifications:
Model: INCL-DXL360S
Accuracy:± (0.05°+1%)
Resolution:0.01°
Measuring Range Single Axis: 360°, Dual Axis: ±40°
Response Time:<0.4 second
Beep:60dB@30m
Operating Temperature:0 to 50°C(32 to 122°)
Storage Temperature:-10 to 60°C(14 to 140°)
User Interface:Mono-color LCD with backlight
Supply Power: Rechargeable Li-Polymer 3.7V
Charger Port: 5V 500mA Mini type-B USB port
Power Consumption:10uA(Standby), 20mA(Operation)
Standby Battery Life:2000 hours
Operating Battery Life:40 hours
Size:70x70x28mm/2.7×2.7×1.1in
Weight:119.7g/4.2oz
Color:Black And Red

Package Information:
Package Size:180x140x50mm/7.09×5.51×1.97in
Package Weight:350g/12.25oz
General Box Package

Package Included:
1 x Digital Angle Protractor
1 x Charger
1 x Data Cable
1 x Certification
1 x User Manual
