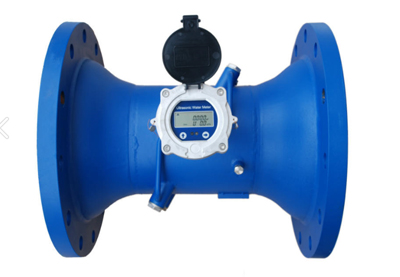

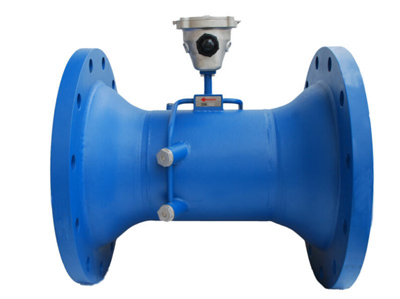

Ultrasonic Water Meter With Wireless Power Supply
Description: Complied with ISO-4064 GBT778 standard, the ROK reliable ultrasonic water meter adapted by advanced transit-time measurment technology, featured with low power consumption, wide measuring rangeratio, stable and reliable measurement, Each components take the IP68 protection class, to ensure long term operation though water in the meter. It is widely used in the urban water supply, water resoures management, irrigation, landscape management, industrial products
Features:
IP68 protection, whoe meter sealed complitely, reach IP 68 protection class, Parts water proof, circuit board, transducer, and battery can reach ip 68 protection level
Built-in Batch ontroller,
Built-in Time Accumulator
Heat measurement: with two way temperature transducer, i can finish the heat measuremnt, especialy for the refrigeration and air-condition industry.
High Accuracy measurement: Double beam ultrasonic sensor for high accuracy.
Ultrasound measurement. No Rotation, No Moving parts

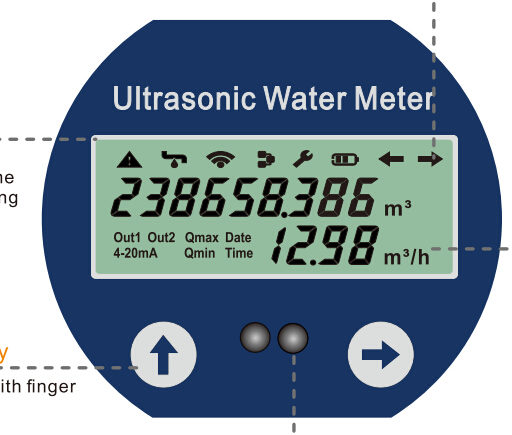

58*22mm LCD, display the instaneous flow, accumulative flow, time and various kinds of working status.
Smart Touch key: easy for operation with finger.
Support Bi-directional flow measurement.
Various of Units selected
InfraredCommunicationInterface. support CJ-188 communication, support the M-bus and modbus communications, and support upgrade software.
External waterproof junction box, can complete the wiring connection without opening the meter cover.
Support communication interface and output:
RS485,
M-Bus,
DC5V,
Two-wired system 4-20mA output,
OCT1(opencollector output1),
OCT2(opencollector output2),
C1 (TTL level pulse output1),
C2 (TTL level pulse output2)
Data Sheet:
Standard: ISO 4064-2005, GBT 778-2007
Measuring Liquid: water, sewage, seawater(other liquid need to customized), liquid shouldbe full of the pipeline.
Medium temperature: 0.1-30 degree
Working Environment: Temperature: -10-45 degree. Humidity: less than 1005(RH)
Working pressure: 1.6Mpa(2.5Mpa optional)
The sensitivity of upstream: U3
The sensitivity of downstream: D0
Climatic and mechanical: Class C
Electromagnetic compatibility class: Calsss E2
Commnication Interface: RS485/USart/Infrared
Output singnal: Two way OCT pulse output/TTL pulse output/One way 4-20mA output.
Powersupply: Built-in lithium battery(3.6,19ahv)/DC8-36V power supply
Protection : IP68, can work 2 meter depth under water
Didigital display: Multi line 9 digital accumulative flow, 4 digital display for instanntaneous flow, varies of state prompt and units.
Data Storage: eeprom/flash, automatically record the accumulative flow of the last 512 days.
Measuring Cycle: measuring: 1 times/second, Verification: 4times/second
Power consumption: less than 2.7AH/year, 6 years battery life.
