intergrated ultrasonic flow meter, OEM/ODM accepted
2, With RS485,
3, 8-36V DC optional

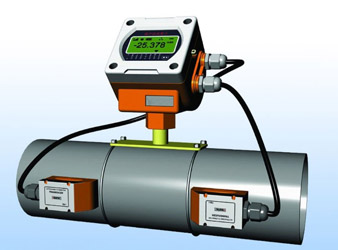

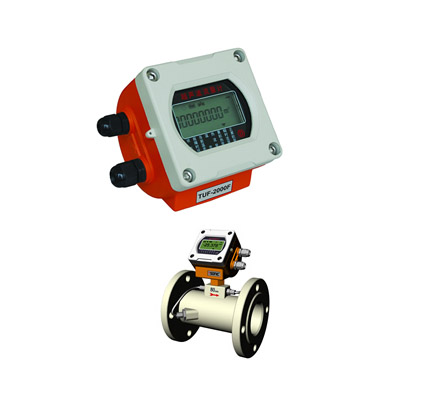

Intergrated ultrasonic flow meter
High accuracy Linearity: better than 0.5%, Repeatability: better than 0.2%,
align="left"> Accuracy : better than ±1%
Wide measuring range Several types transducer for selection, pipe size from DN15mm to DN6000mm
High Protection Grade: Protection Grade of primary meter: IP68, can work in 2 m of water
Easy to operate: Browse data with magnetic stick on primary meter or reset parameter on secondary meter
Multi-display: Integrate signal detecting and flow measuring on primary meter, display accumulated/instantaneous flow, velocity in circle; secondary meter can also display over 100 menus.
Far transmission distance: Connect primary and secondary meter through RS-485 interface, normal cable replaces special cable, transmission distance up to 1000m
intergrated ultrasonic flow meter General Specification:
|
Optional Transducer
|
Model
|
Measuring Range
|
Liquid Temperature
|
Accuracy
|
|
Clamp-on Transducer
|
TS-1(Small Size)
|
TUF-2000SNB1
|
DN15-100mm
|
-30°C~90°C
|
±1%
|
|
TM-1(Medium Size)
|
TUF-2000SNB2
|
DN50-1000mm
|
|
TL-1(Large Size)
|
TUF-2000SNB3
|
DN300-6000mm
|
|
High-temp.
Clamp-on Transducer
|
THS-1(Small Size)
|
TUF-2000SNB4
|
DN15-100mm
|
-30°C~160°C
|
|
THM-1(Medium Size)
|
TUF-2000SNB5
|
DN300-1000mm
|
|
Insertion Transducer
|
TC-1(Standard)
|
TUF-2000SNC1
|
DN80-6000mm
|
-40°C~160°C
|
|
TLC-2(Lengthen)
|
TUF-2000SNC2
|
|
Prover Section Transducer
|
Prover Section Transducer
|
TUF-2000SNG
|
DN15-1000mm
|
-40°C~160°C
|
±0.5%
|
|
Power Supply
|
Primary meter: 3.6V lithium battery(8-36V DC powered optional ) secondary meter: AC220V or DC24V
|
|
Input
|
3 channel 4 -20mA analog input, two channels Tri-wire resistance signal input (PT100)
|
|
Output
|
Isolation RS-485 output, 2 channel isolation OCT output; 1 channel isolation 4-20mA output (two-wire system)
|
|
Communication Protocols
|
Compatible with METER-BUS, MODBUS, Fuji extended protocol and general water meter protocol.
|
