1. Cooling water temperature, flow, cooling energy measurement
2. Hot water temperature, flow, heat energy measurement
3. Heat exchanger temperature, flow, heat energy measurement
4. Freezer pouring water temperature, flow, cooling energy measurement
5. Boiler pouring water temperature, flow, heat energy measurement
6. Cooling water, alcohol, energy measurement, housing energy consumption, energy-saving and emission reduction, etc.
Features:
1. Measuring heat flow;
2. Sewage and drainage water with small particle quantity. Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc.
3. Beverage and food processors hot and cool water, water /glycol solutions;
4. Water and waste treatment Power plants, heat energy boiler feed water;
5. Energy consumption supervision and water conservation management;
6. Metallurgy and miming applications (e.g., acid recovery);
7. Marine operation and maintenance;
8. Pulp and paper industries Pipeline leak detection;
9. inspection, tracking and collection Energy measurement and balancing.
General Specifications:
|
Items
|
Specifications
|
|

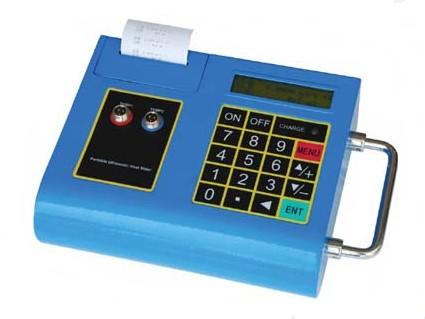

Main unit
|
2 line x 20 character LCD with backlight
Working temperature: -25--60°C
|
|
Mini thermal printer with 24 line character output
|
|
4x4+2 pushbutton keypad
|
|
RS-485 interface for networking
|
|
Ultrasonic Transducer options
|
TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110°C
|
|
TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110°C
|
|
TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110°C
|
|
Temperature Transducer
|
Three wire pt100 platinic resistance,
measuring range :-50 -----180°C
measuring accuracy:100°C, 0.8°C ,
the temperature difference ≤0.1°C
|
|
Liquid types
|
Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.
|
|
Flow velocity range
|
0- ±30m/s
|
|
Accuracy
|
Better than ±1%
|
|
Power Supply
|
Built-in rechargeable Ni-MH battery (for 20 hours operation) or
AC 220V
|
|
Power Consumption
|
1.5W
|
|
Charging
|
Intelligent charging with AC 220V; After charging sufficiently, it automatically stop and display green light
|
