Noise meter,Decibelmeter, sound level meter
Zoom Browse

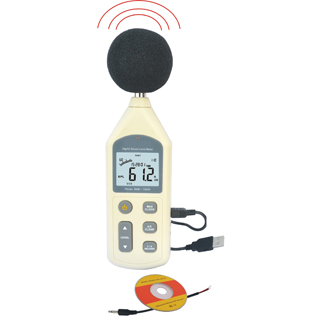

Product Name: Noise meter,Decibelmeter, sound level meter
Product Numbers: SLME-1016
Product Specifications: 4700 data store
Product Unit: Sampling rate: 2times/second
Product Remark: Frequency response: 31.5Hz ~8.5KHz
Product Class:Measuring and Testing Instruments > Environmental Test > Sound Level Meters
Product Details
【DateTime:2012-07-27 Browse:】【Font: Big Mid Small】【Print】【Close
Sound level meter measure sound pressure level and are commonly used in noise pollution studies for the quantification of almost any noise, but especially for industrial, environmental and aircraft noise, school. Sound level meters are divided into two classes—what were called types in previous standards. The two classes have the same design centre goals but the tolerances differ. Class 1 instruments have a wider frequency range and a tighter tolerance than a similar, lower cost, Class 2 unit

A sound level meter is a handheld instrument used to measure sound, or noise The sound level meter picks up the small variations in pressure that are the sound waves and, after passing it through amplifiers, filters, etc. provides you with a reading in decibels
SLME-1016 China Digital Decibel Sound Level Meter was designed according to following standards:
----A. International electrician committee standard: IEC PUB 651 TYPE2
----B. US national standard: ANSI S1.4 TYPE2
*Packing method: PP box + Gift box
*Power: 1.5V AA* 4pcs or DC 6V 100mA adapter
*Dimension: 256*70*35mm
*Weight: 308g (including batteries)
*Measuring range:
----30~130 dBA
----35~130 dBC
*Accuracy: ±1.5 dB
*Digit & Resolution: 5 & 0.1 dB
*Frequency response: 31.5Hz ~8.5KHz
*Measuring level: 30~130, 40~90, 50~100, 60~110, 80~130
* Frequency weighting characteristic: A & C
* Time weighting: FAST/SLOW
*Sampling rate: 2times/second
*Microphone1/2 inch polarization capacitance microphone
*AC/DC output
*Max reading
*PWM output
*Calenda
*4700 data store
*USB computer interface
*Analysis software
*Overload indication: OVER / UNDER
*Automatic backlight
*Low battery indication
*Auto power off
This applies to both the sound level meter itself as well as the associated calibrator.
