Automatic Identify Electrode Portable pH/ORP/Conductivity Meter
Measurement of parameters such as pH, ORP, conductivity, TDS, salinity, resistivity and temperature of water solution, the most cost effective portable analytical instrument
Features:
1. Multi-parameter meter, equipped with pH electrode, ORP electrode and conductivity electrode, automatic identification of electrode by meter
2. Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, self-diagnose information, automatic power-off and low voltage display.
3. Automatic identification of 13 pH standard buffer solutions, three options of standard buffer solutions: Europe and America series, NIST series and China series
4. Able to set pH measurement modes of high purity water and pure water with ammonia
5. Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series
6. Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.
7. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale
8. Conductivity measurement mode has the function of non-linear temperature compensation for high purity water
9. Meter meets IP57 rating, equipped with calibration solution and portable case.
Specification:
| Category |
Product Name |
Basic features and specifications |
| PH |
Measuring range
|
(-2.00 ~ 19.99)pH |
|
Resolution
|
0.1/0.01 pH |
|
Accuracy
|
Meter:+/-0.01pH; Overall: +/-0.02pH |
|
Input current
|
≤2*10-12 A |
|
Input impendance
|
≥1*1012 Ω |
|
Stability
|
+/-0.01 pH/3h |
| Temp. compensation range |
(0 ~ 100)℃(automatic) |
| ORP |
Measuring range (mV/ORP/EH)
|
-1999mV ~ 0 ~ 1999mV |
|
Resolution
|
1mV |
|
Accuracy
|
Meter:+/-0.1% FS, Overall: +/-15mV |
| Conductivity |
Measuring range |
Conductivity:)0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm |
|
Resolution
|
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter:+/-1.0% FS, Overall:+/-1.5% FS |
|
Temp. compensation range
|
(0 ~ 50)℃(manual) |
|
Electrode constant
|
0.1 / 1 / 10 cm-1 |
|
Benchmark temperature
|
25℃, 20℃ and 18℃ |
| Other Technical Parameters |
Data storage
|
200 groups |
| Storage content |
Series number, measuring value measuring unit and temperature, |
|
Power
|
Two AA batteries (1.5V *2) |
|
Size and weight
|
meter: (65*120*31)mm/180g; Suitcase: (360*270*76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature
|
5 ~ 35 ℃(0.01grade) |
|
Environmental humidity
|
≤85% |
|
IP rating
|
IP57 Dustproof and waterproof |
Package:

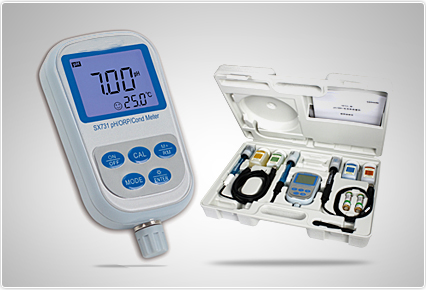

1. Model SX731 pH/ORP/Conductivity meter 1set
2. 201T-S plastic pH/ATC three-in-one combined electrode 1pcs
3. 301Pt-S plastic ORP combined electrode 1pcs
4. 2301-S plastic conductivity electrode 1pc
5. pH standard buffer solution(pH4.00, pH7.00 and pH10.01/50mL) 1btl/each
6. 1413μS/cm conductivity standard solution (50mL) 1bottle
7. Screw driver 1pcs
8. Spare AA batteries 2pcs
9. Operation manual 1pcs
10. Carrying case 1unit
Optional Accessories:
|
Accessory Category
|
Description
|
Specifications
|
|
pH combination electrode
|
201T-S plastic three-in-one pH electrode
|
Measure pH and temperature simultaneously, ATC, suited for general pH measurement, 8 pin conncetor.
|
|
2503DT-S glass three-in-one combintion pH electrode
|
ATC, suited for pH measurement of solution under low temperature and pure water, 8 pin connector.
|
|
Glass flow cell
|
Match 2503DT-S electrode.
|
|
ORP combination electrode
|
301Pt-S Plastic ORP combination electrode
|
Suited for general ORP measurement, 8 pin connector.
|
|
Conductivity electrode
|
2301-S Plastic conductivity electrode
|
K=1.0 cm-1,ATC, suited for conductivity measurement of general water solution, 8 pin connector.
|
|
DJS-0.1-S Glass conductivity electrode
|
K=0.1cm-1,ATC, suited for pH measurement of of high purity water, 8 pin connector.
|
|
Glass flow cell
|
Match DJS-0.1-S electrode.
|
|
pH buffer
|
pH4.00 buffer
|
500mL/250mL/50mL(bottle)
|
|
pH6.86 buffer
|
500mL/250mL/50mL(bottle)
|
|
pH9.18 buffer
|
500mL/250mL/50mL(bottle)
|
|
pH7.00 buffer
|
500mL/250mL/50mL(bottle)
|
|
pH10.01 buffer
|
500mL/250mL/50mL(bottle)
|
|
Conductivity standard
|
84 μS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
1413 μS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
12.88 mS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
146.6 μS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
1408 μS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
12.85 mS/cm conductivity standard
|
500mL/250mL/50mL(bottle)
|
|
Electrode soaking solution
|
pH(ORP)combination electrode soaking solution
|
500mL/250mL/50mL(bottle)
|
|
ORP standard solution
|
222 mV ORP standard solution
|
250mL/100mL/50mL(bottle)
|
|
Portable case
|
Small portable case(255*210*50)mm
|
Match single electrode.
|
|
Big portable case(360*270*76)mm
|
Match multi- electrode
|
